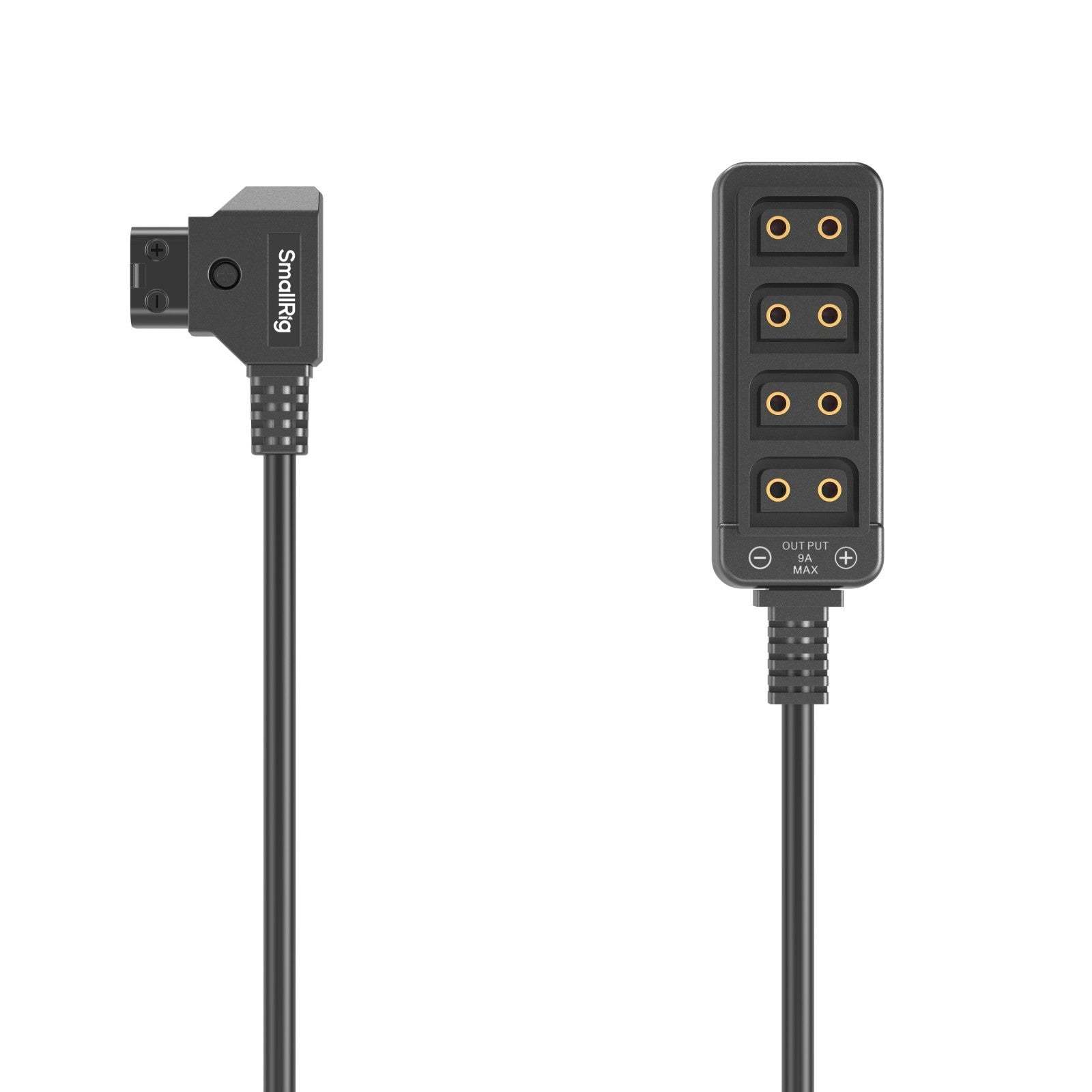

• SmallRig D-Tap 1-to-4 Power Cable – close-up of male D-Tap connector and four female D-Tap outputs.

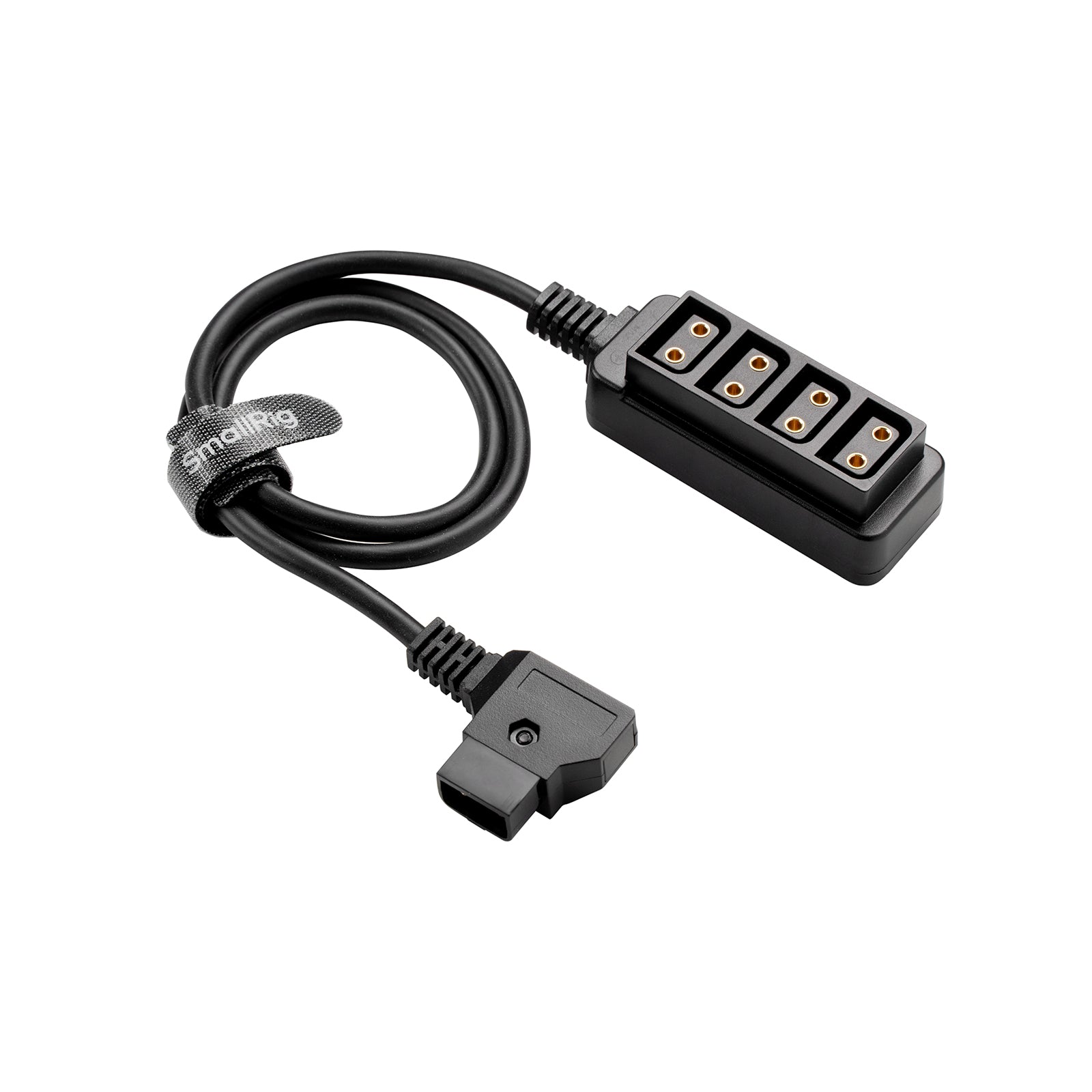

  • SmallRig D-Tap 1-to-4 Power Cable – coiled product shot showing angled male D-Tap plug and four-port splitter block.

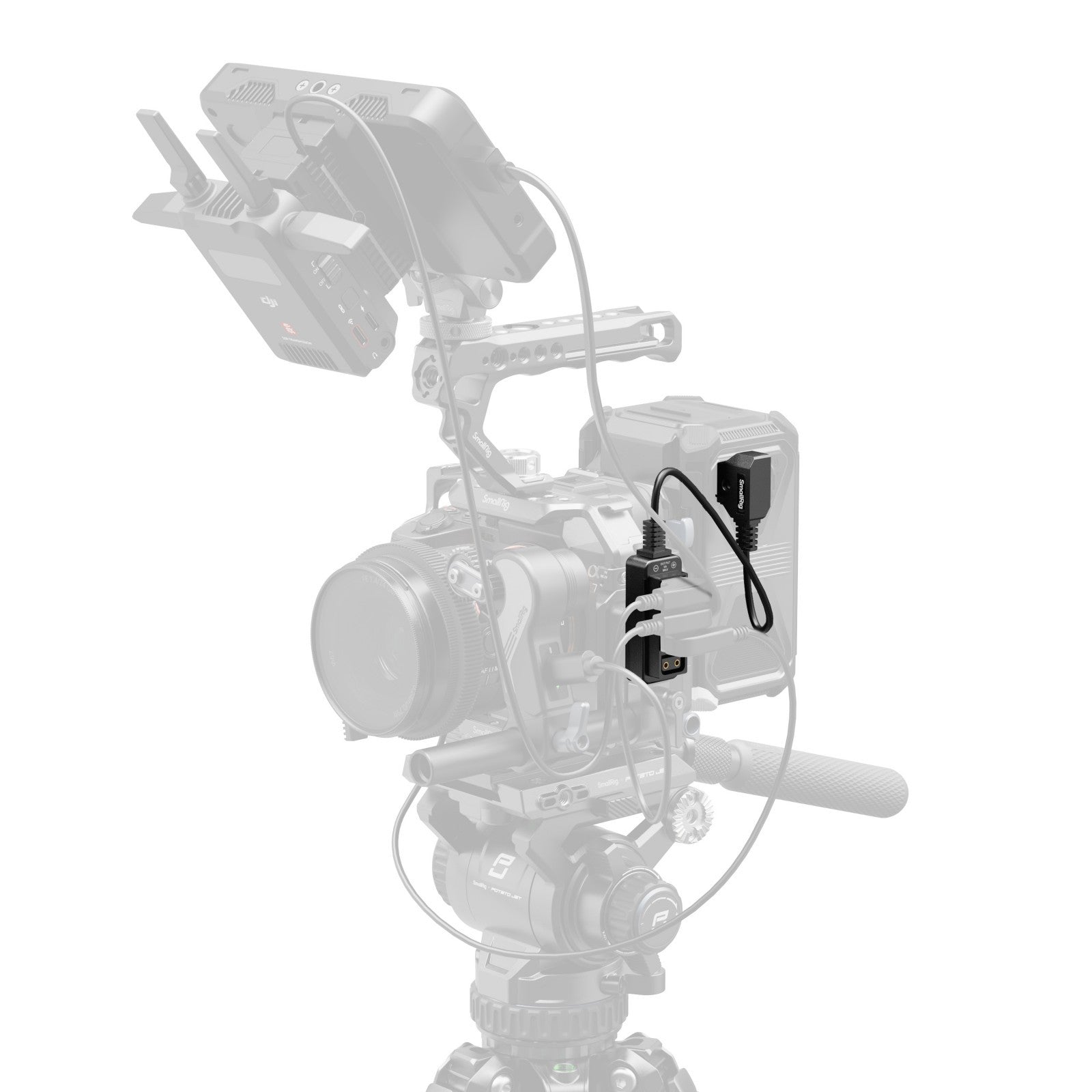

  • SmallRig D-Tap 1-to-4 Power Cable mounted on cinema camera rig – powering monitor, wireless transmitter, and accessories.

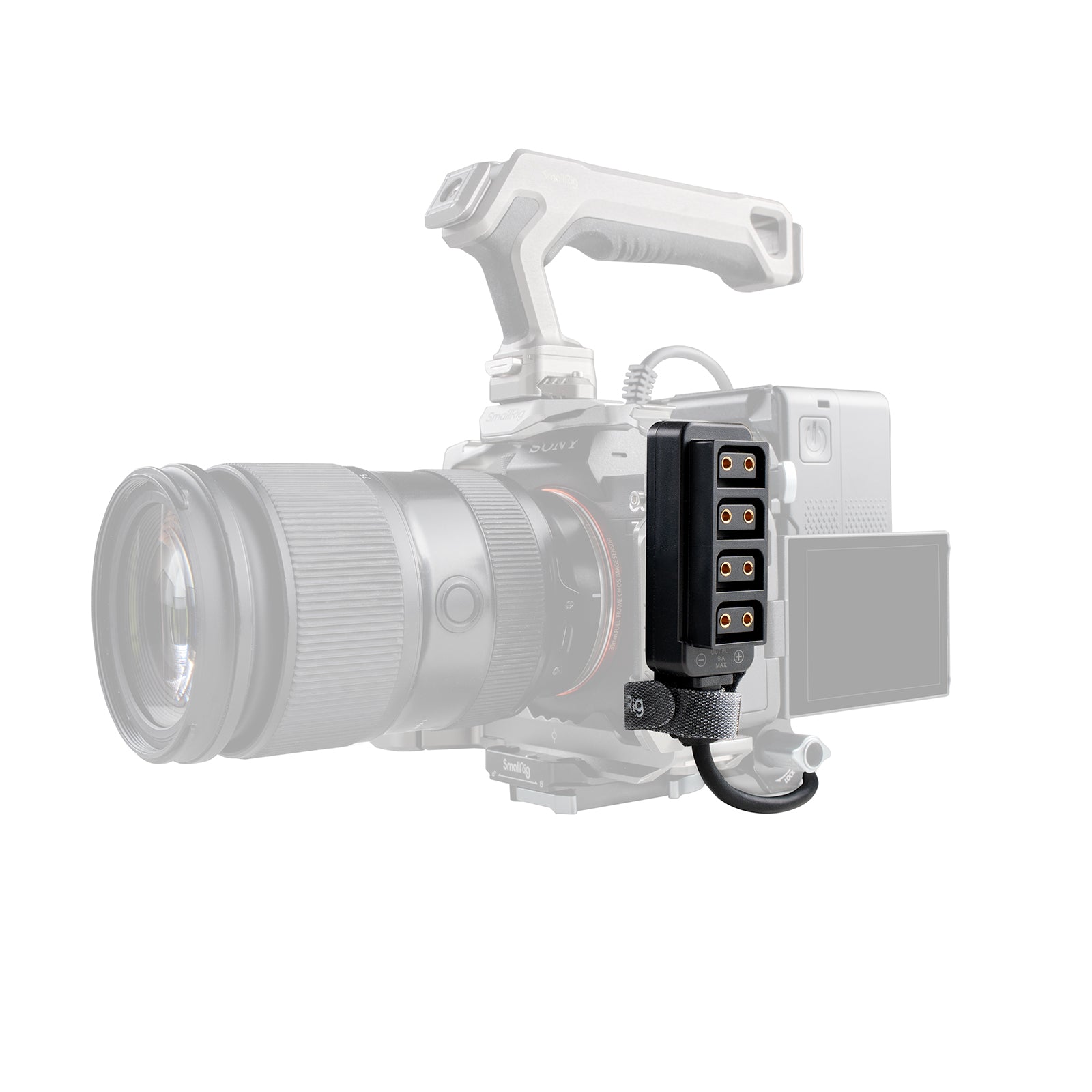

  • SmallRig D-Tap 1-to-4 Power Cable – compact power hub attached to Sony FX6 rig with four outputs visible.

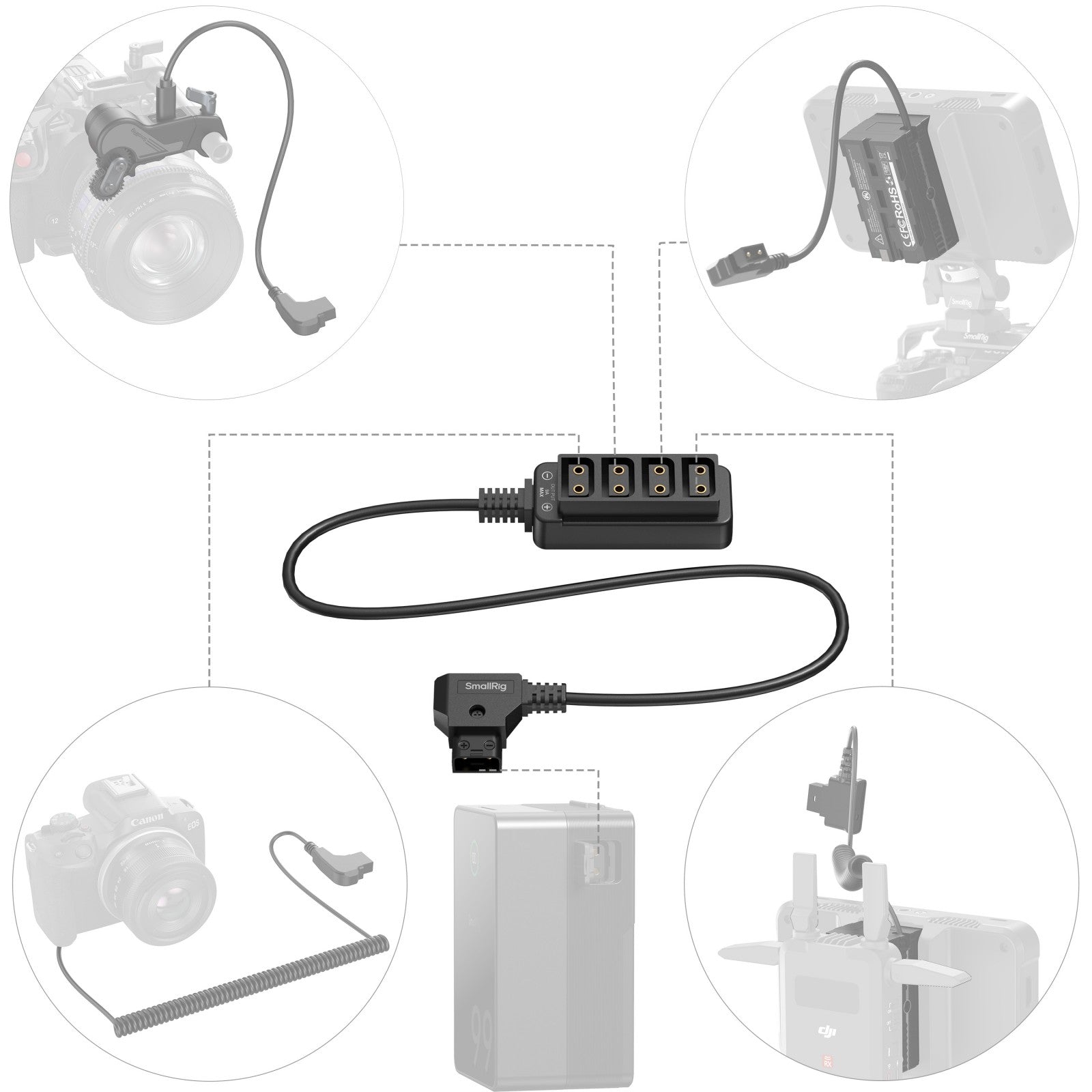

  • SmallRig D-Tap 1-to-4 Power Cable powering multiple accessories – connection diagram with V-Mount battery, monitor, and camera.

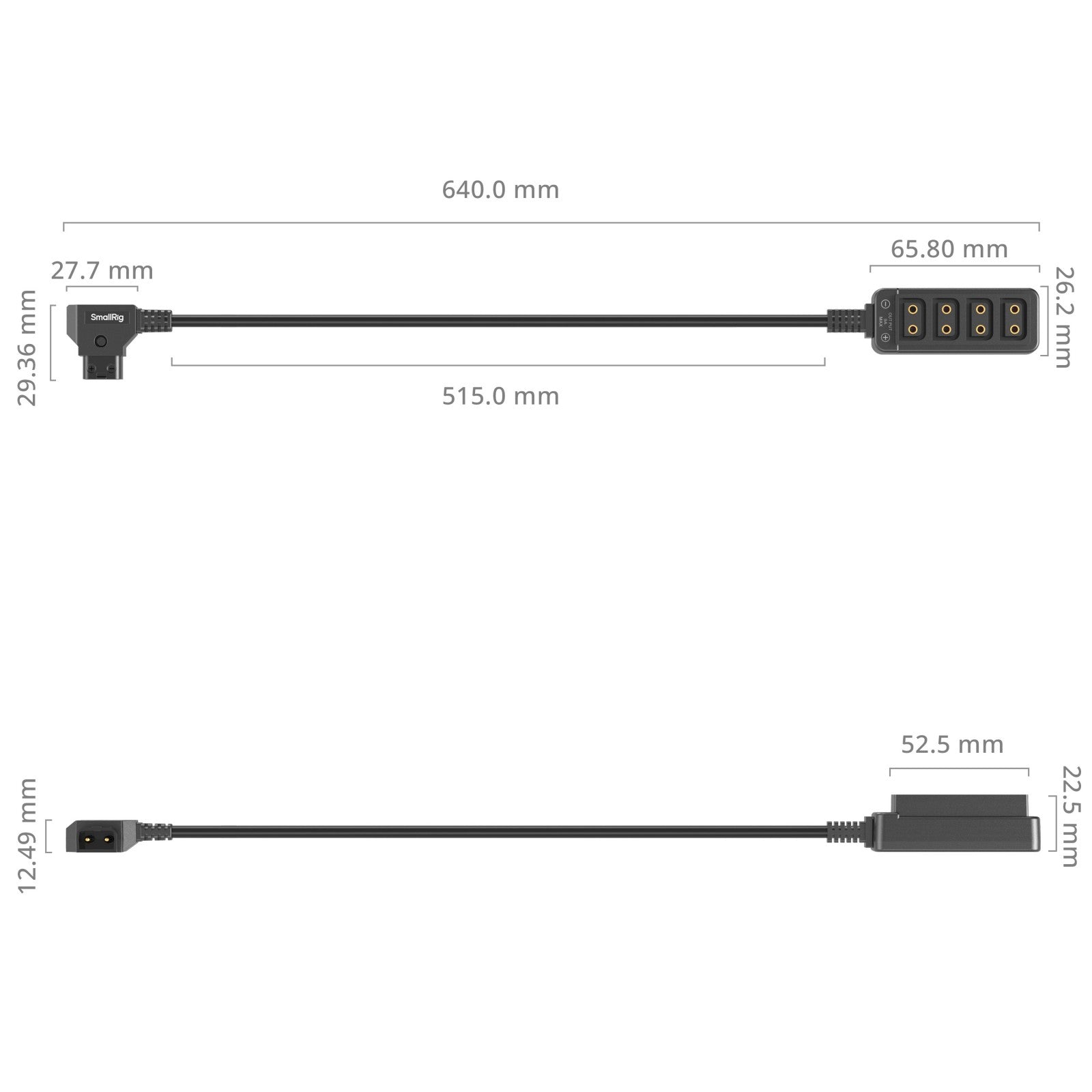

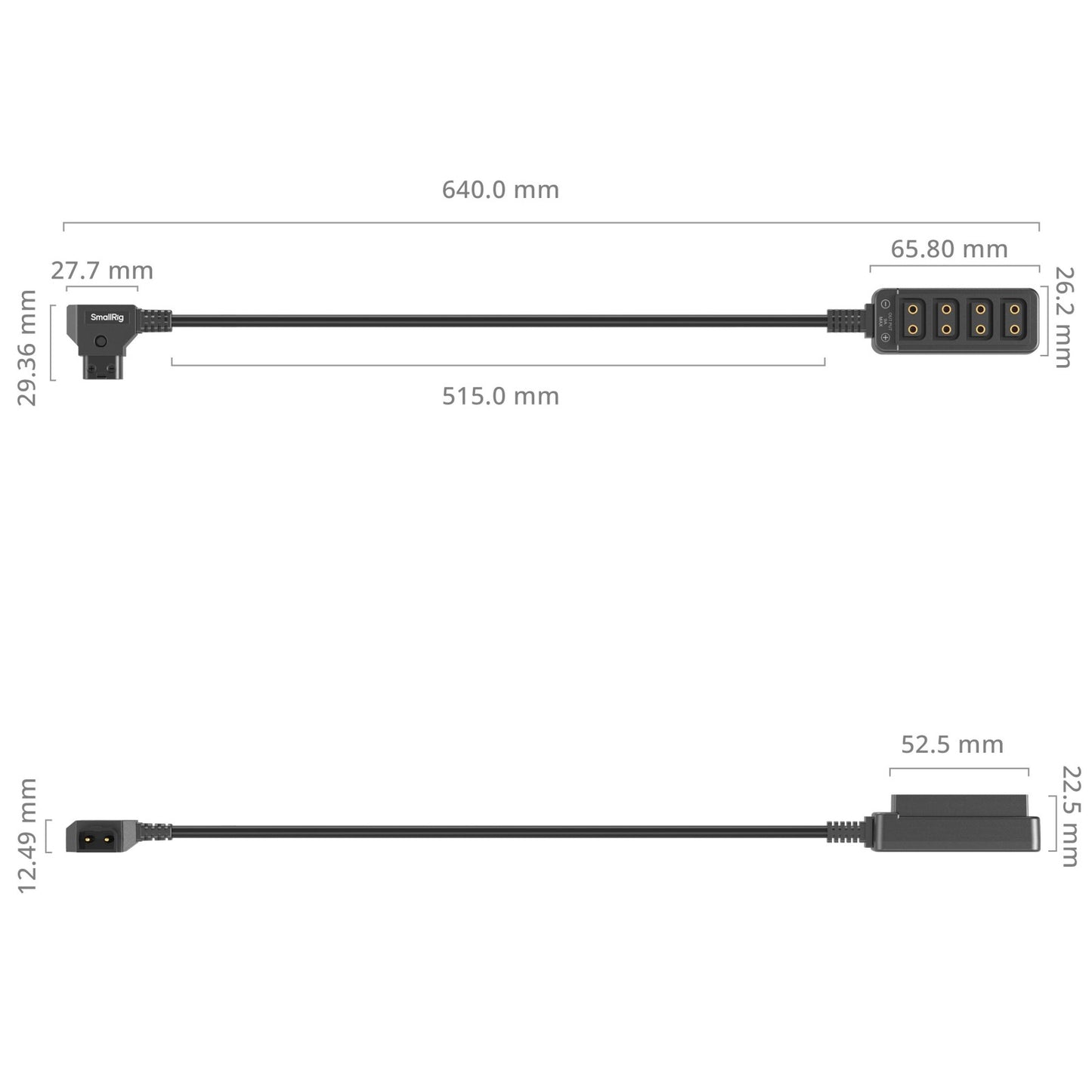

  • SmallRig D-Tap 1-to-4 Power Cable – technical dimensions diagram with measurements of length and connector sizes.

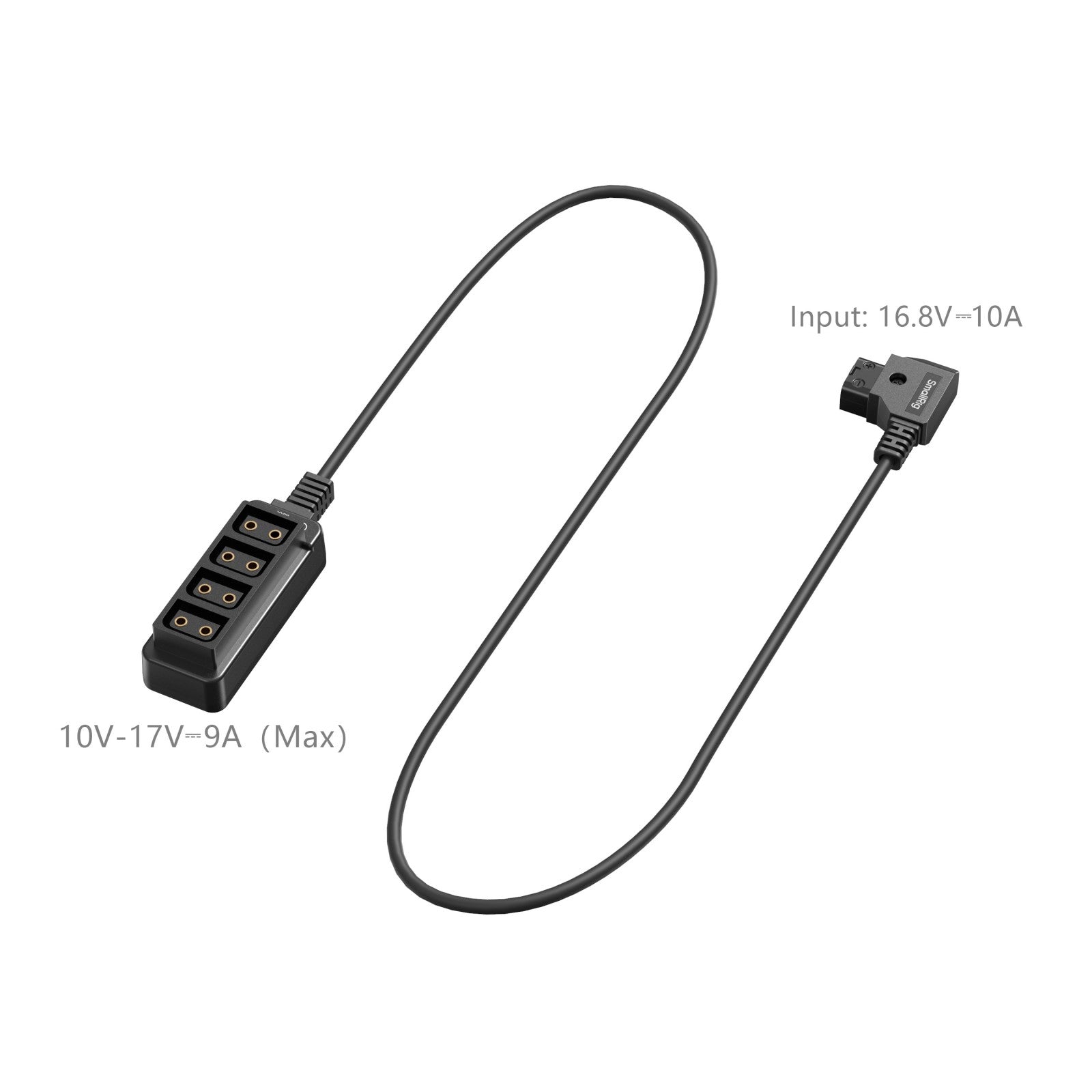

  • SmallRig D-Tap 1-to-4 Power Cable – angled view with voltage input and output ratings shown on cable housing.
1 7

RIGR

D-Tap 1-to-4 Power Cable

D-Tap 1-to-4 Power Cable

SmallRig DT1-4 Power Cable 4831 converts one single D-Tap input into four independent D-Tap outputs, enabling simultaneous power delivery to four devices. Ideal for powering mirrorless cameras, monitors, video transmitters, and follow focus systems, it simplifies cable organisation on the go.
Constructed from fire-resistant ABS, PC, and PU materials, this cable enhances charging efficiency and safety, ensuring long-term reliability. It incorporates multiple circuit protections—reverse polarity protection, over-current protection—to ensure safe charging and reliable performance during shooting.

Package Includes

  • DT1-4 Power Cable
  • User Manual

Specs

  • Input Voltage Range: 10V–17V
  • Rated Input Voltage;: 16.8V
  • Rated Input Current: 10A
  • Output Voltage Range: 10V–17V
  • Output Current: 9A (Max)
  • Protections: Reverse Polarity, Over-current
  • Housing Material: ABS+PC
  • Cable Material: PVC
