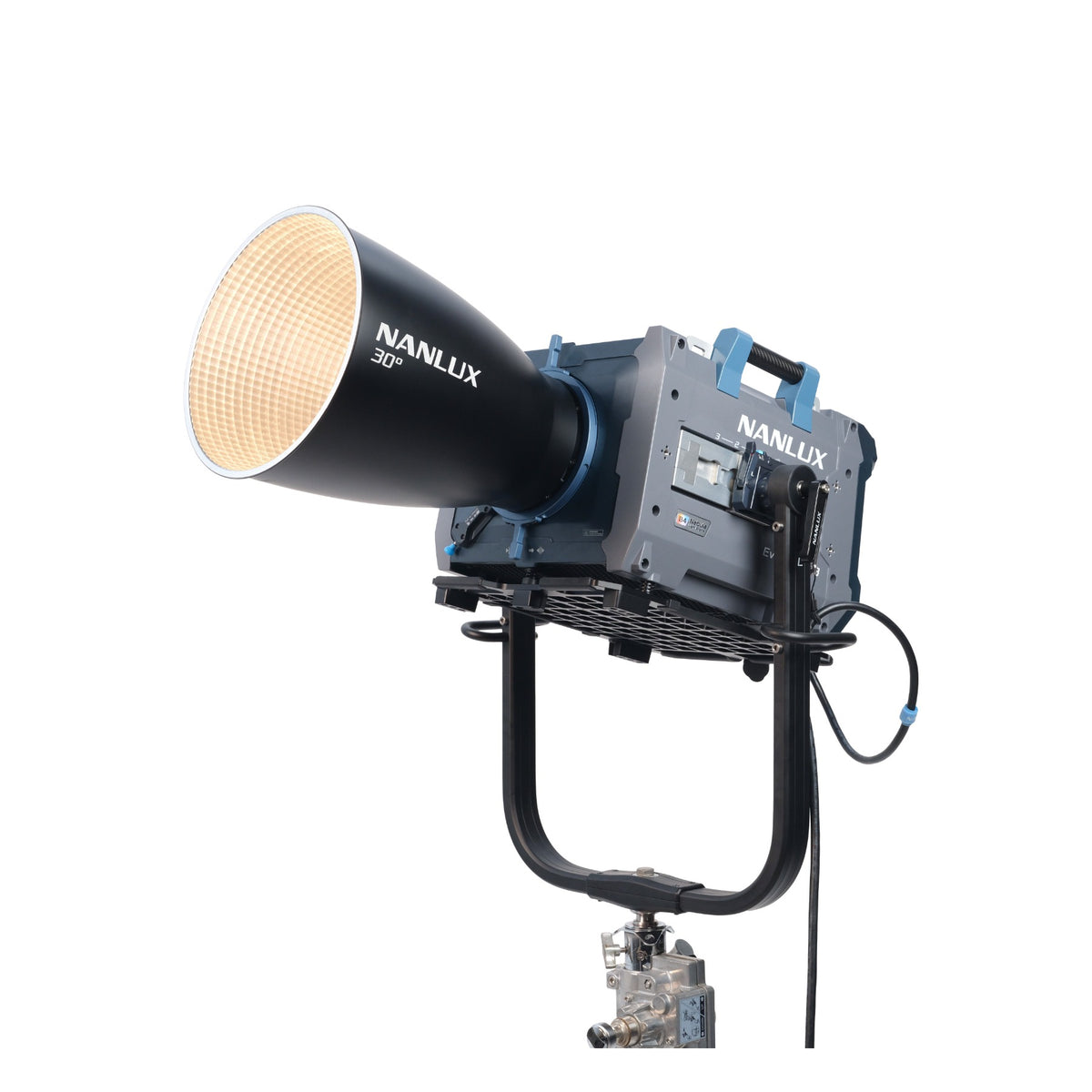

• NANLUX Evoke 5000B with conical reflector attachment lit and emitting warm light, revealing the honeycomb grid pattern on the reflector's inner surface, mounted on stand.

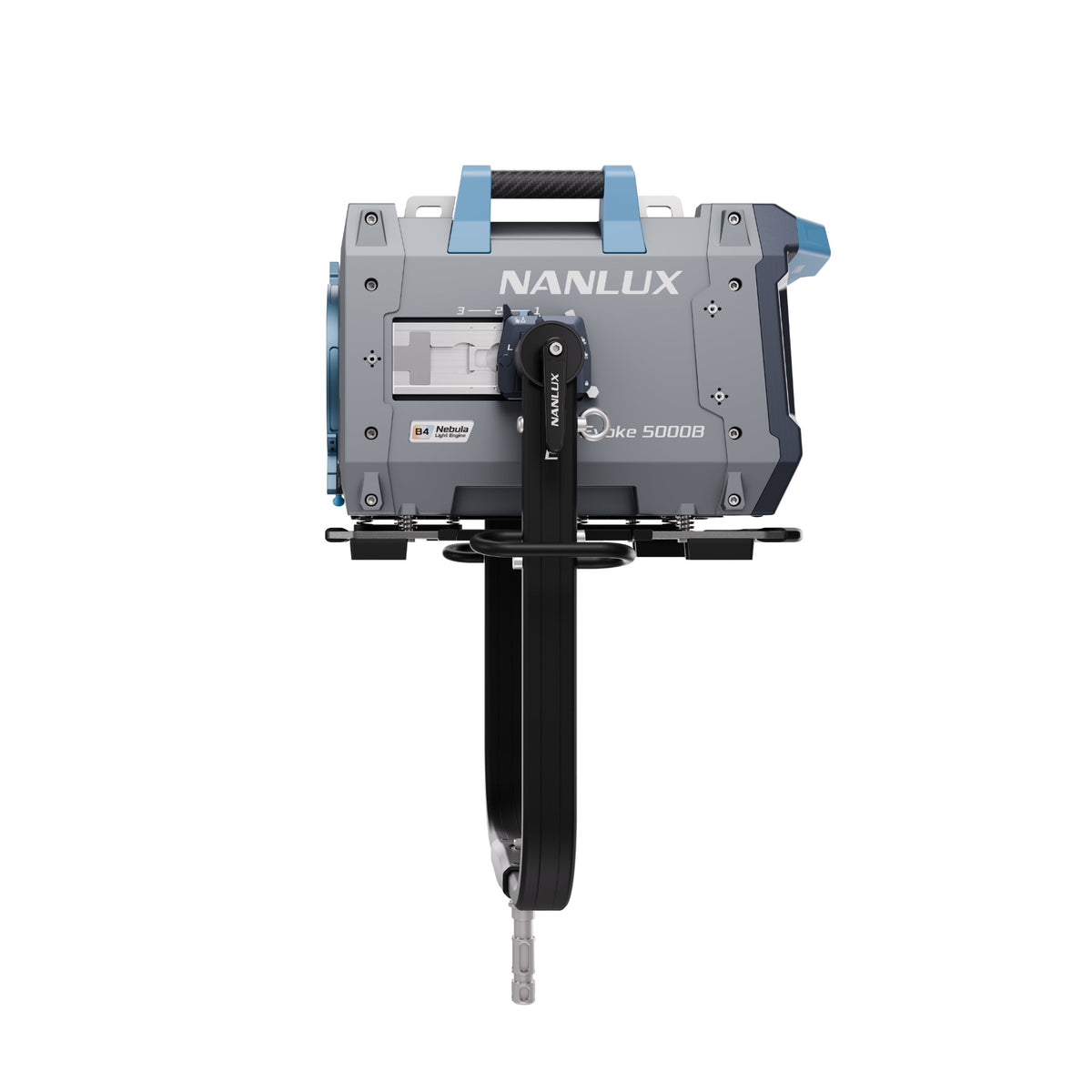

  • NANLUX Evoke 5000B mounted on a black stand pole, photographed from directly in front, showing the blue carry handles and control interface area on the front body.

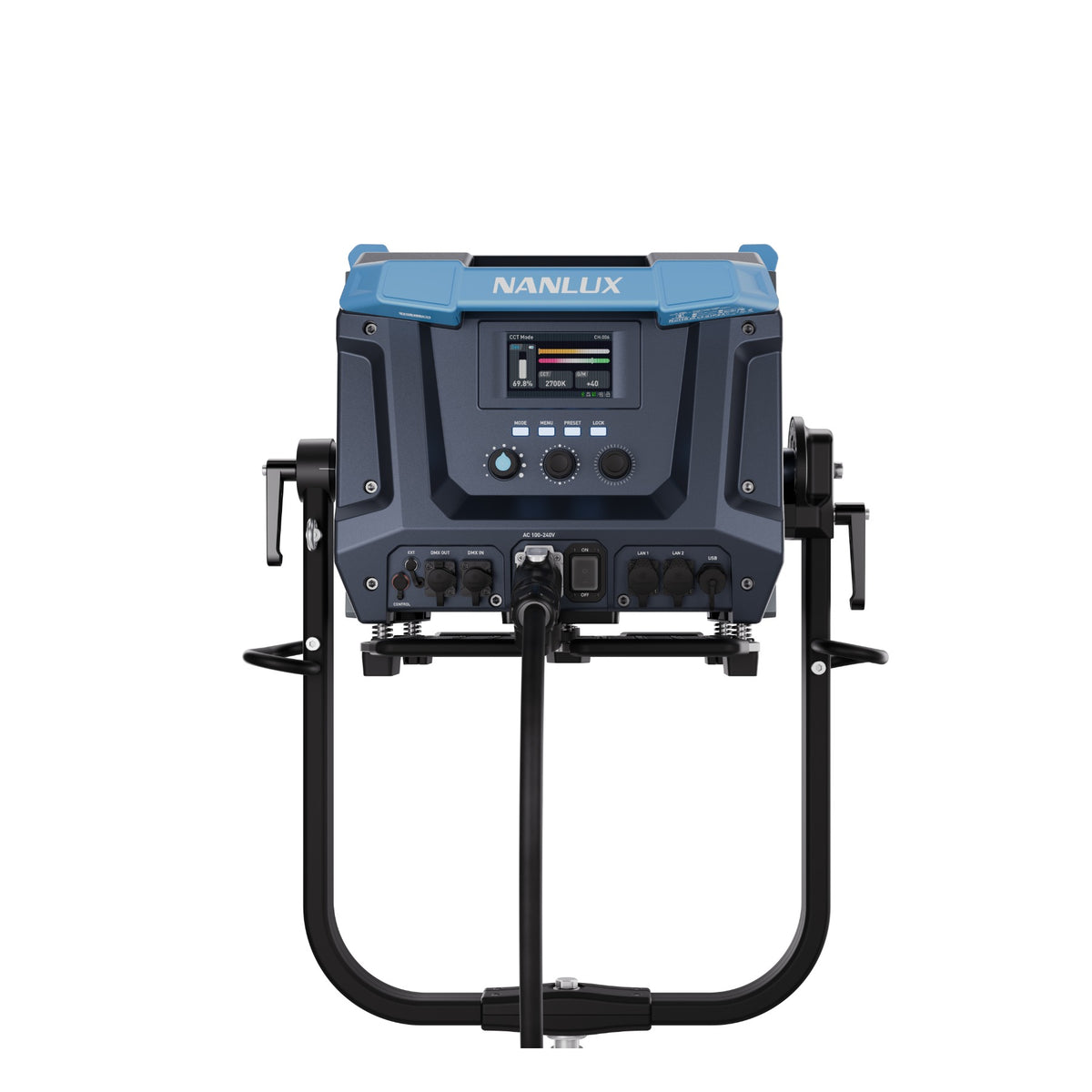

  • NANLUX Evoke 5000B mounted on stand, photographed from the rear showing the full control panel with display screen, buttons, and connectors on the back of the fixture.

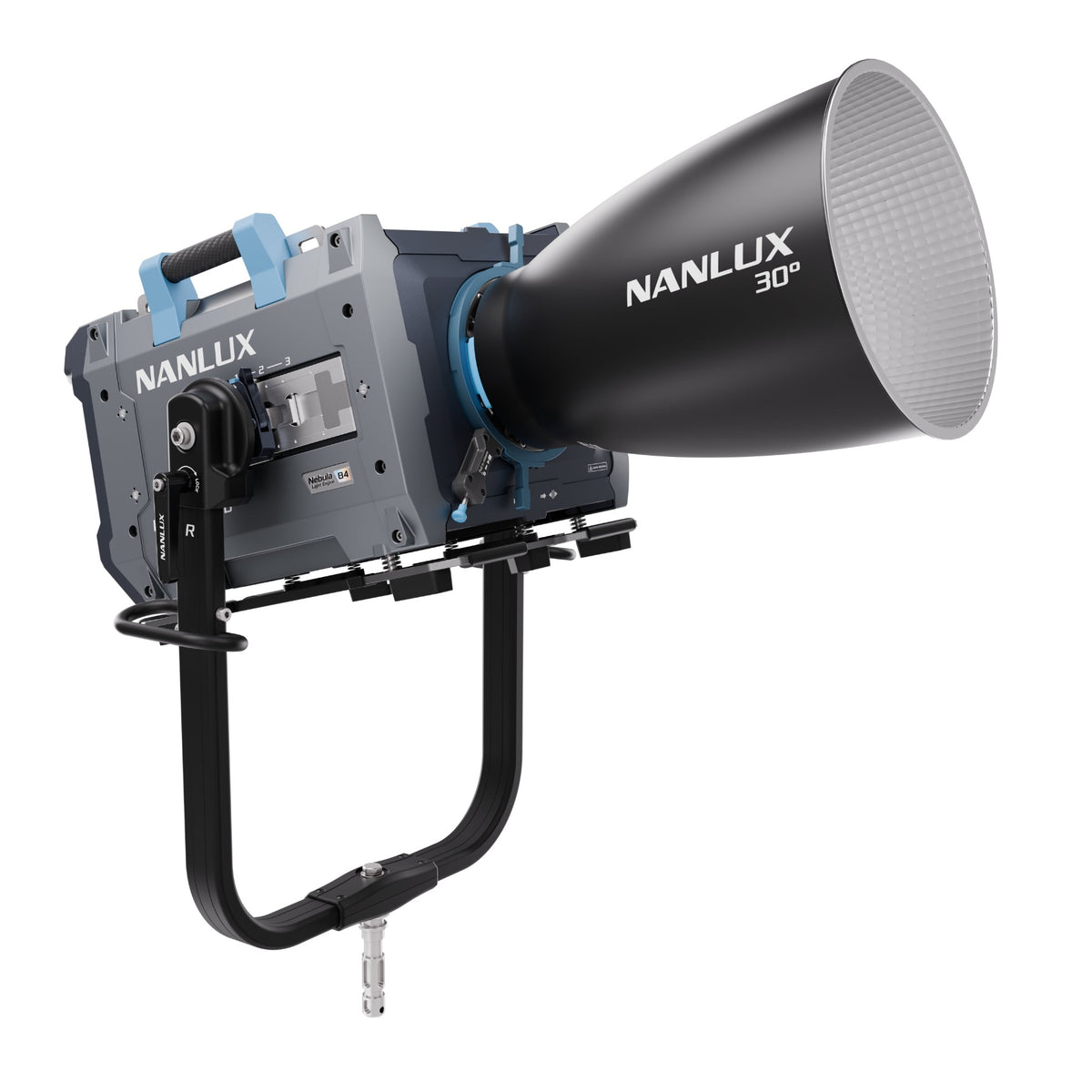

  • NANLUX Evoke 5000B mounted on stand with the NANLUX 30° lens attachment installed, showing the focused narrow beam lens mounted on the front of the head.

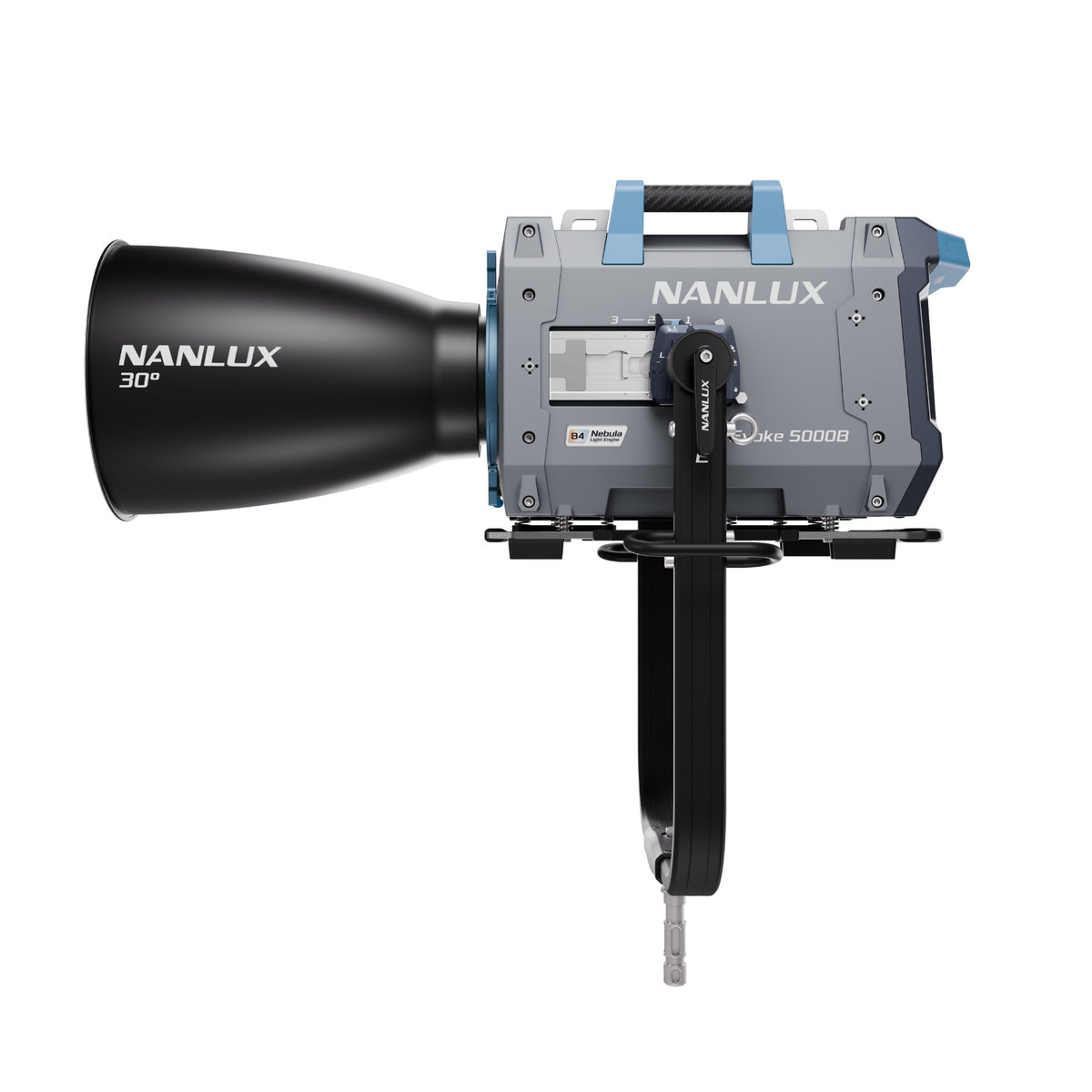

  • NANLUX Evoke 5000B with 30° lens attachment shown in side profile mounted on stand, emphasizing the depth and cylindrical barrel of the lens element.

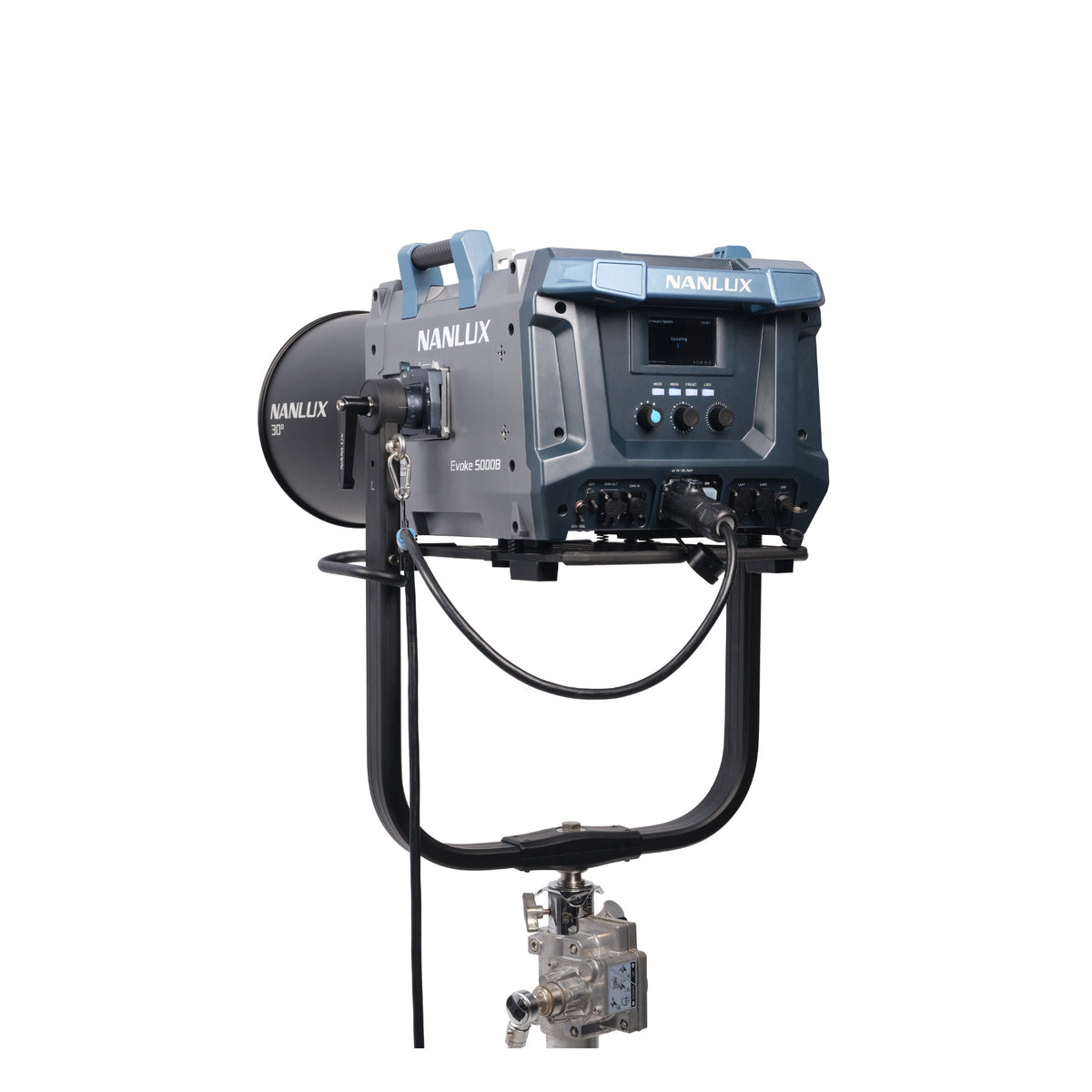

  • NANLUX Evoke 5000B with 30° lens attachment mounted on stand, photographed from the rear to show the control panel, back connectors, and cable routing alongside the focused lens optic.
  • NANLUX Evoke 5000B with conical reflector attached, mounted on stand pole, photographed from a 3/4 overhead angle showing both the reflector dish (exposing golden interior) and side control panels.

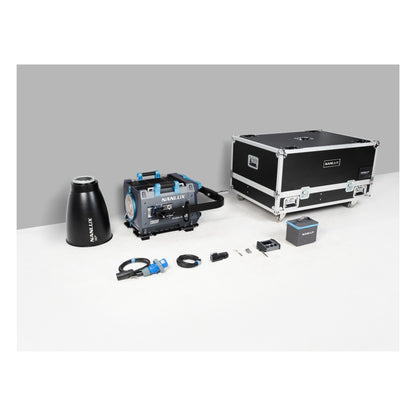

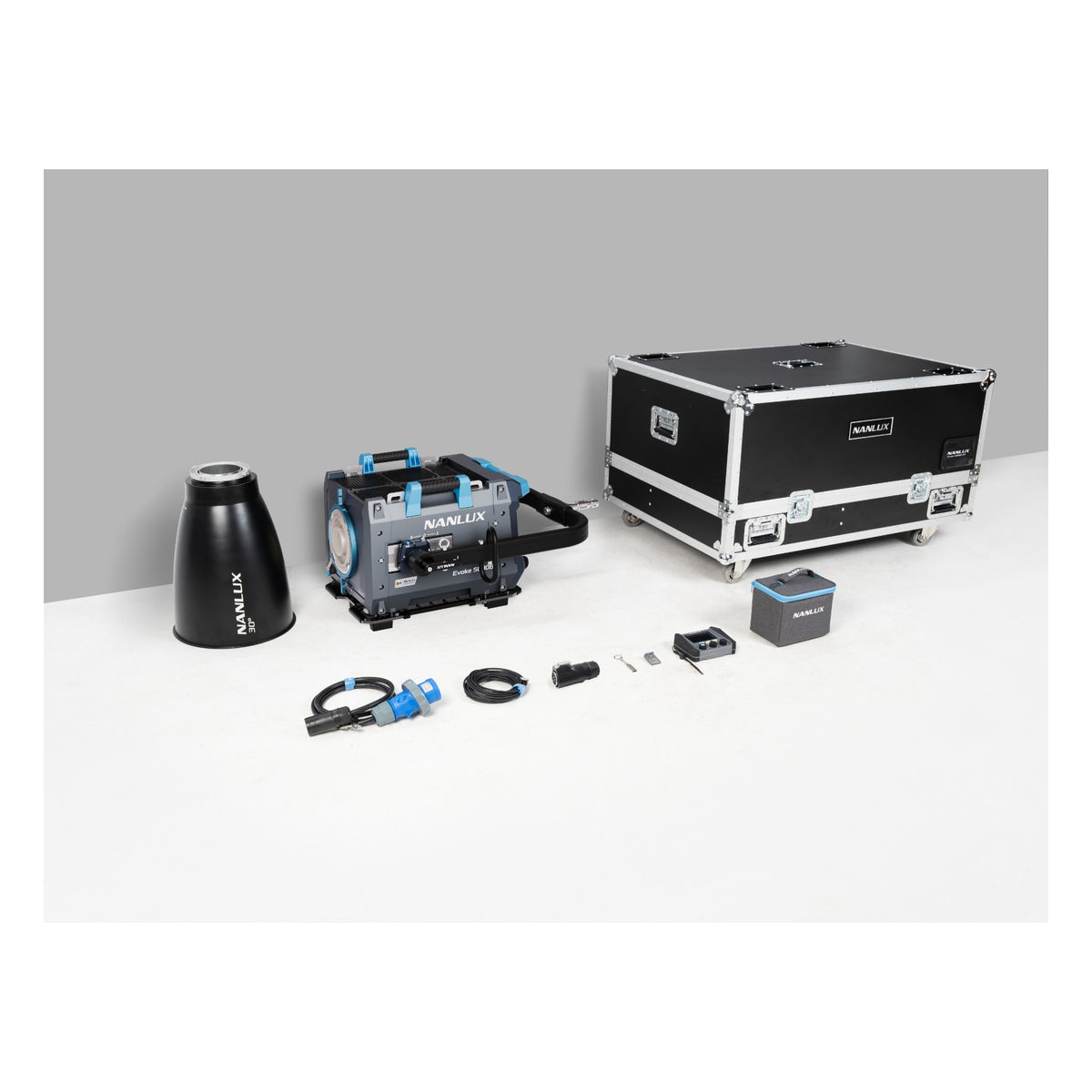

  • Complete NANLUX Evoke 5000B-KIT displayed on white surface showing the gray light head with blue accents, conical reflector, flight case with latches, remote controller, cables, and small accessories arranged left to right.
1 8

Nanlux

NANLUX Evoke 5000B-KIT (Flight Case Kit)

NANLUX Evoke 5000B-KIT (Flight Case Kit)

The Evoke 5000B is a 5000W bi-color LED monolight engineered for productions where power, control and reliable transport matter. At 46kg with yoke, it delivers the output you'd expect from traditional HMI or tungsten fixtures while drawing less power and running cool enough for longer shoot days.

This flight case kit is built for crews working between locations. The heavy-duty protective case houses the fixture, yoke, reflector, controller, cables and accessories with custom-cut foam, so everything arrives ready to rig. The wheels, reinforced corners and industrial latches hold up to frequent truck and trailer transport. On set, the bi-color range from 2700K to 6500K plus ±80 green and magenta adjustment means you adjust color in software rather than reaching for gels. Linear dimming down to 0.1% step increments works with flicker-free output even at high frame rates, and you control it via onboard display, wired controller, DMX, CRMX wireless or the Nanlink app.

IP66 weatherproofing lets you keep shooting through location changes, and the NL mount ecosystem connects to the same modifiers as the Evoke 2400B. Built for production houses and rental operations that move fast and need gear that stays put.

Key Features

  • 5000W power with 555,250 lux output at 3.3 feet (5600K)
  • Bi-color 2700K-6500K with ±80 green and magenta adjustment
  • Nebula B4 Light Engine for 30% better white light efficiency than full-color designs
  • IP66 weatherproof rating for outdoor and adverse conditions
  • Linear dimming 0-100% with 0.1% step increments
  • High-speed flicker-free mode up to 10,000 fps
  • All-in-one integrated lamp, control unit and power supply
  • Control via onboard display, wired controller, DMX/RDM, CRMX wireless or Nanlink app
  • NL mount compatible with Evoke 2400B accessory ecosystem
  • Heavy-duty flight case with wheeled transport and reinforced protection

Package Includes

  • 1 x Nanlux Evoke 5000B LED Bi-Color Monolight
  • 1 x Motorized yoke assembly
  • 1 x 30-degree reflector
  • 1 x CC-EV5000-FT flight case
  • 1 x WC-EXT wired controller with 8m connection cable
  • 1 x AC power cable 2m (200-240V)
  • 1 x AS-MB-1 magnetic base
  • 1 x Carrying bag for controller
  • 1 x USB flash drive with documentation
  • 2 x User manuals

Specs

  • Power consumption: 5000W (200-240V regions), 5200W (100-125V regions)
  • Light output: 555,250 lux at 3.3 feet (5600K with reflector)
  • Color temperature range: 2700K to 6500K
  • Green/Magenta adjustment: ±80
  • Color rendering: CRI 97, TLCI 98, TM-30 Rf 96, Rg 102
  • Dimming range: 0-100% continuous with 0.1% step increments
  • High-speed mode: Flicker-free output up to 10,000 fps
  • Fixture weight (with yoke): 46 kg (101 lb)
  • Weather rating: IP66
  • Mount: Nanlux NL mount
