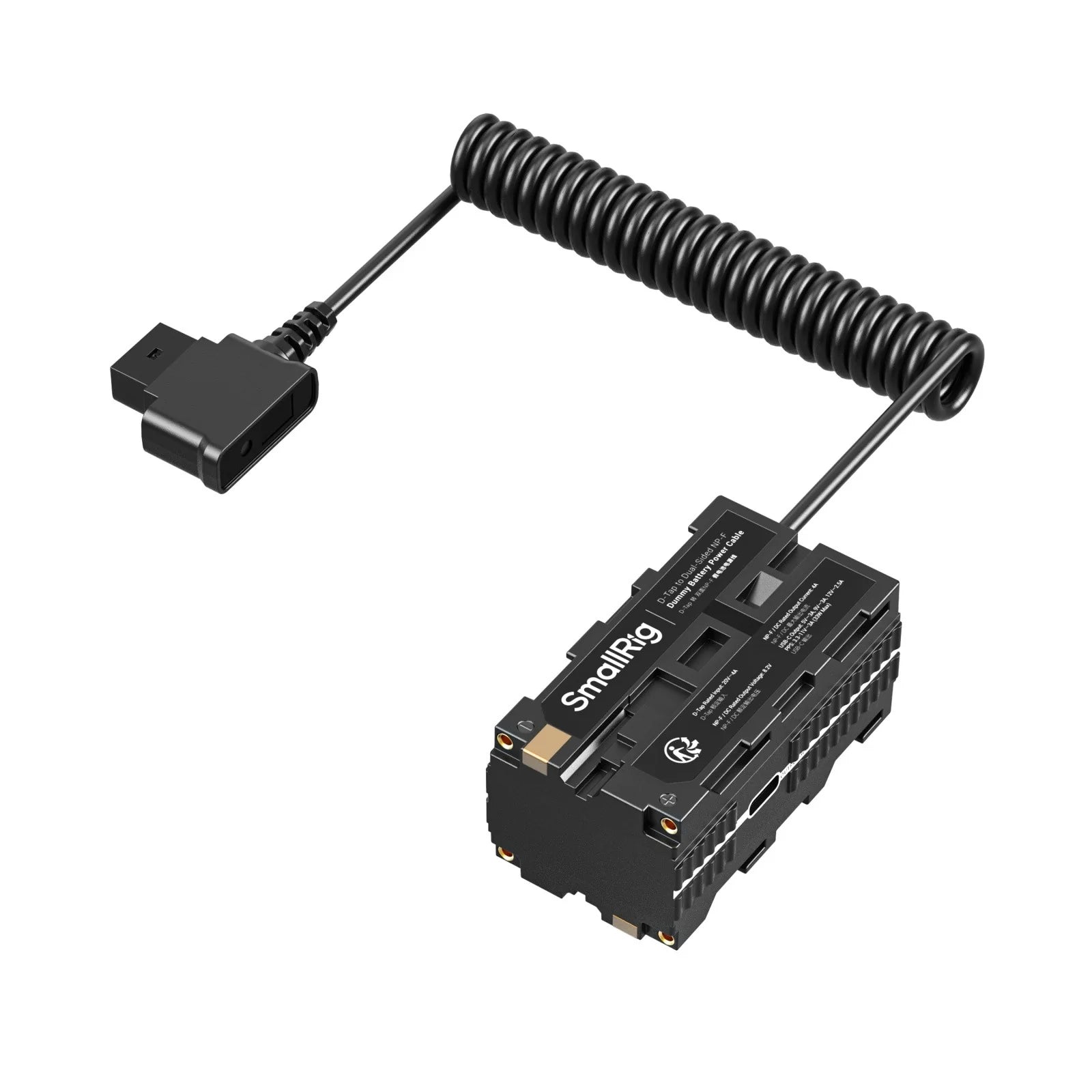

• SmallRig D-Tap to Dual NP-F dummy battery adapter with coiled power cable and compact housing design.

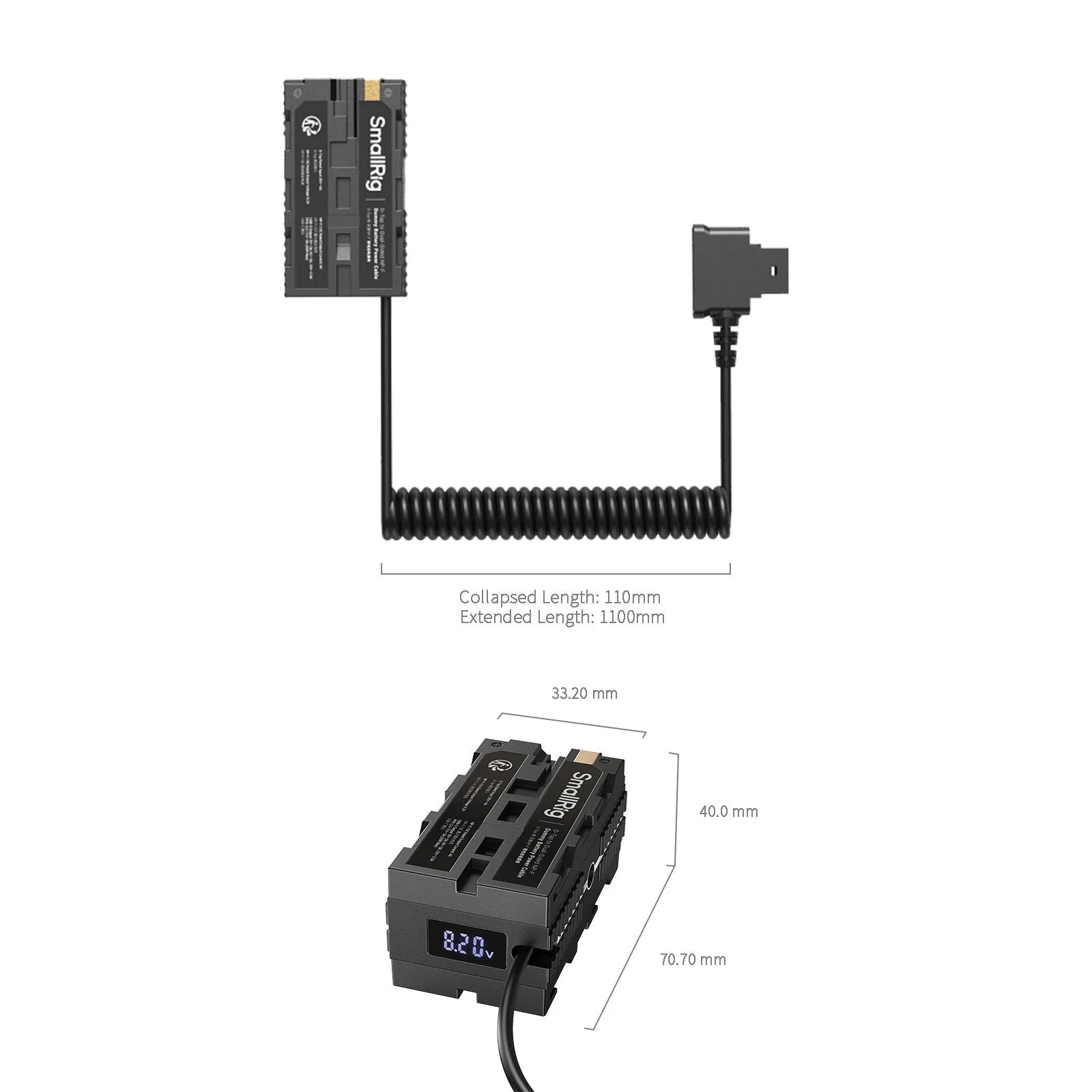

  • Top and side dimensions of SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable, including cable length and housing size.

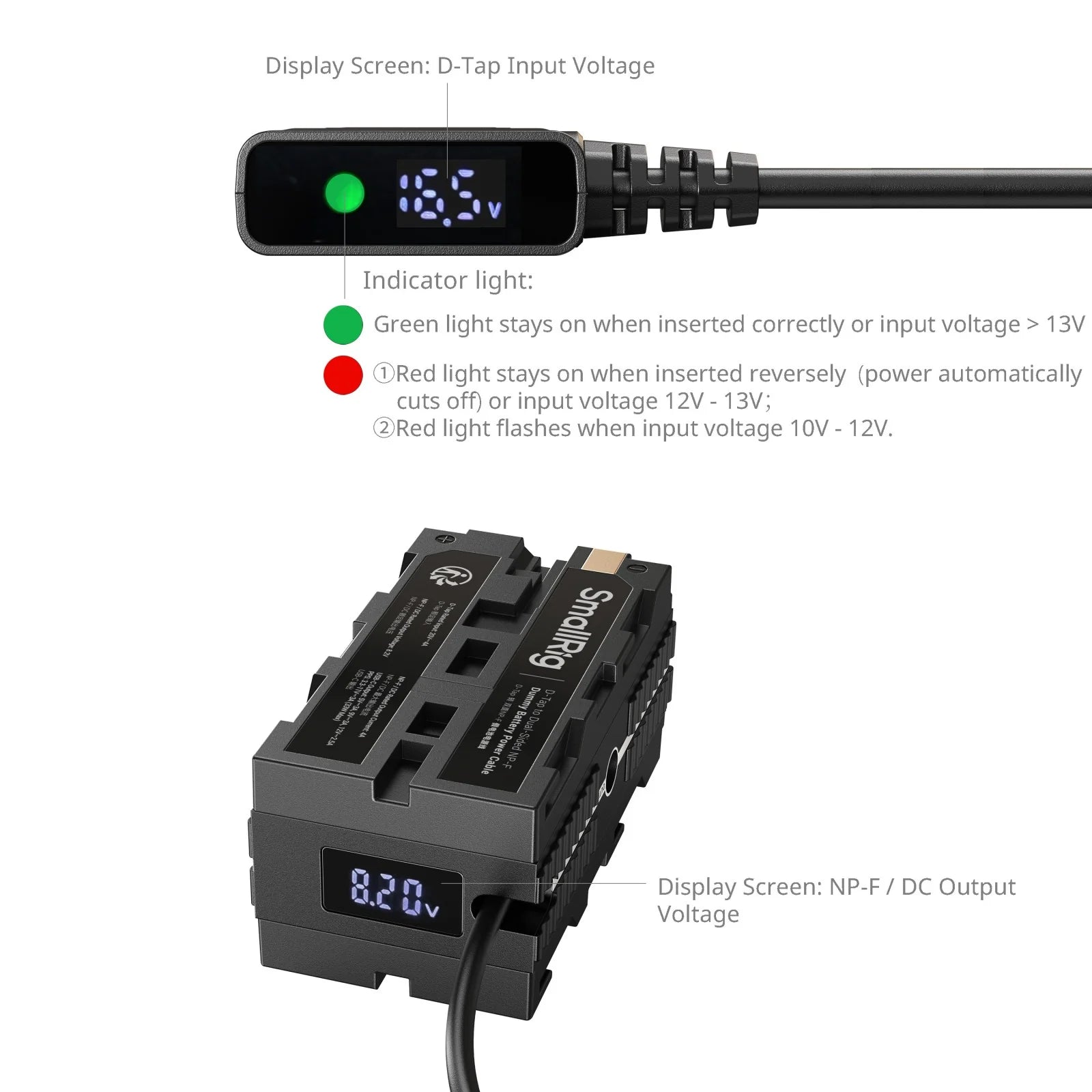

  • Voltage display and indicator light on the D-Tap cable head, showing input/output status explanations.

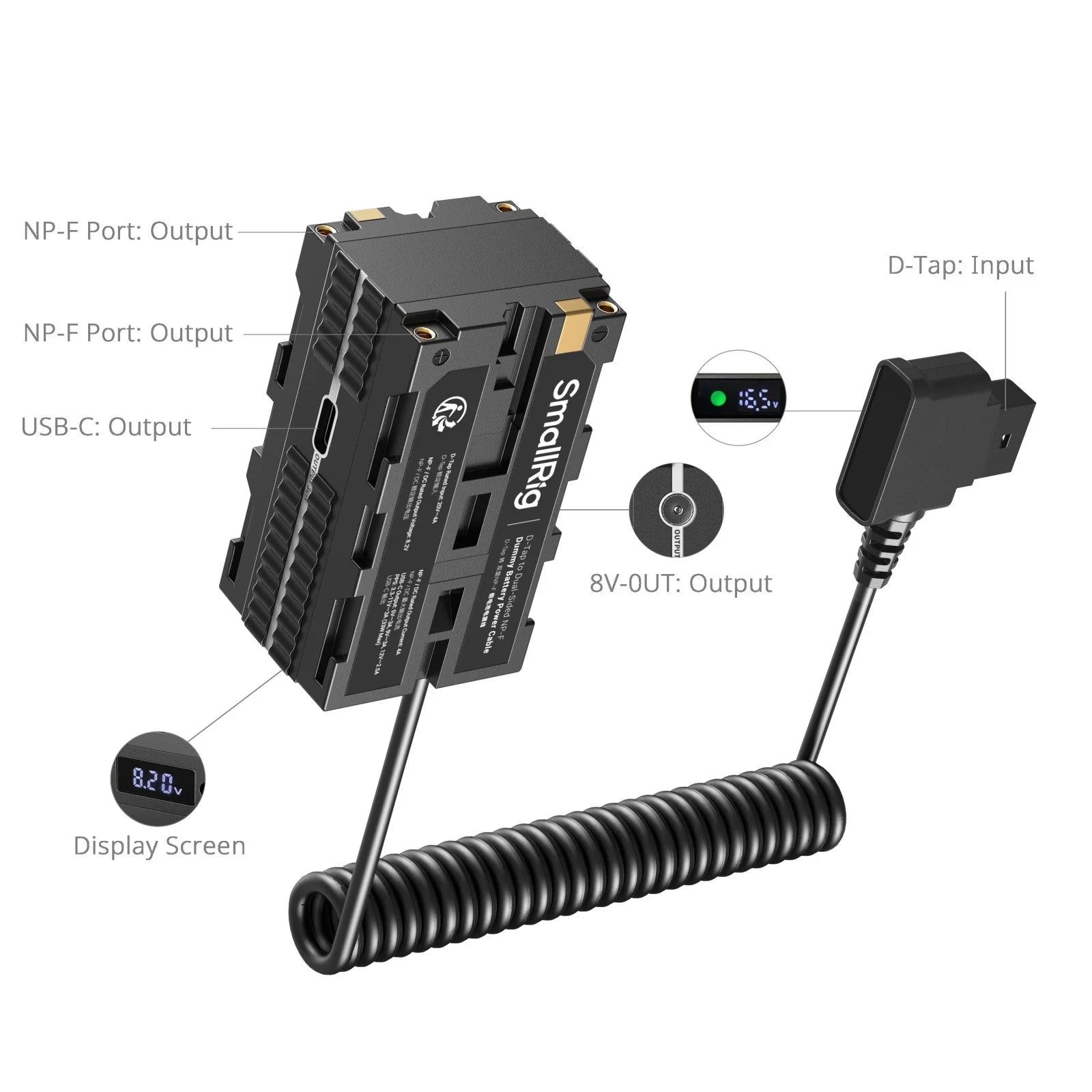

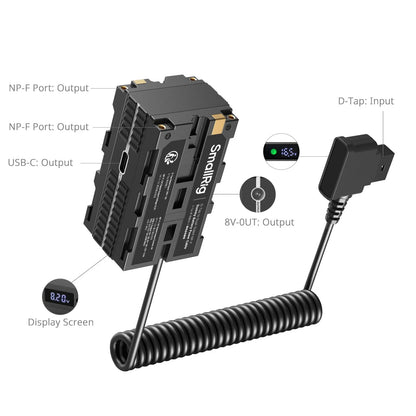

  • Labeled ports and display screen on the SmallRig dummy battery showing NP-F outputs, USB-C output, and 8V DC out.

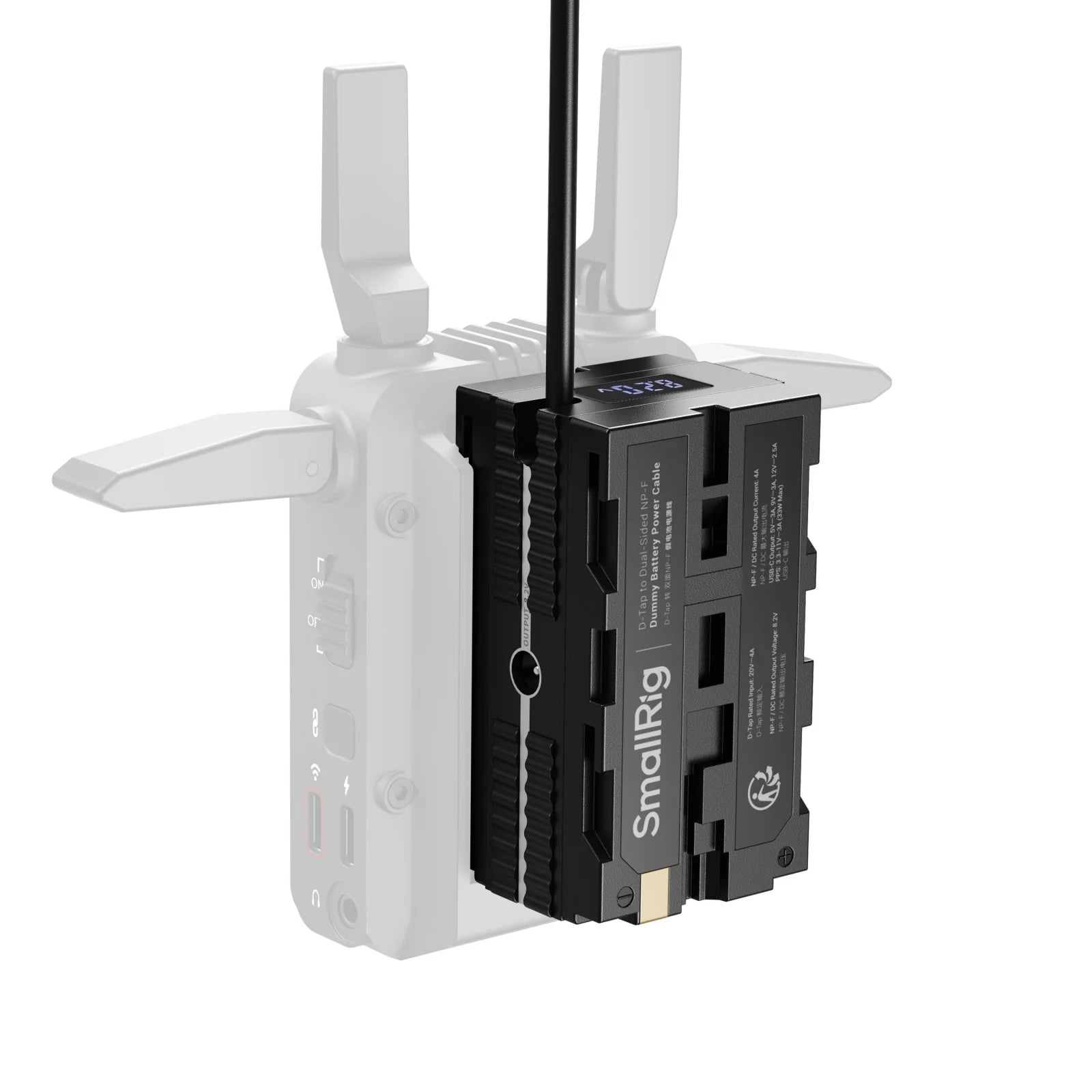

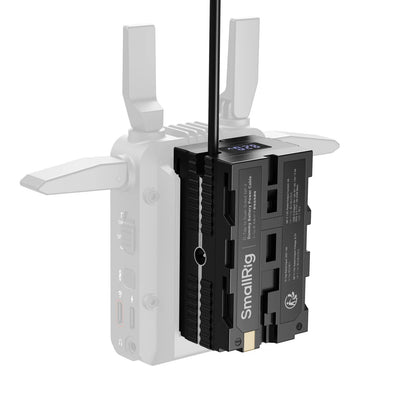

  • Rear view of the SmallRig dummy battery unit showing dual NP-F outputs and voltage display screen.

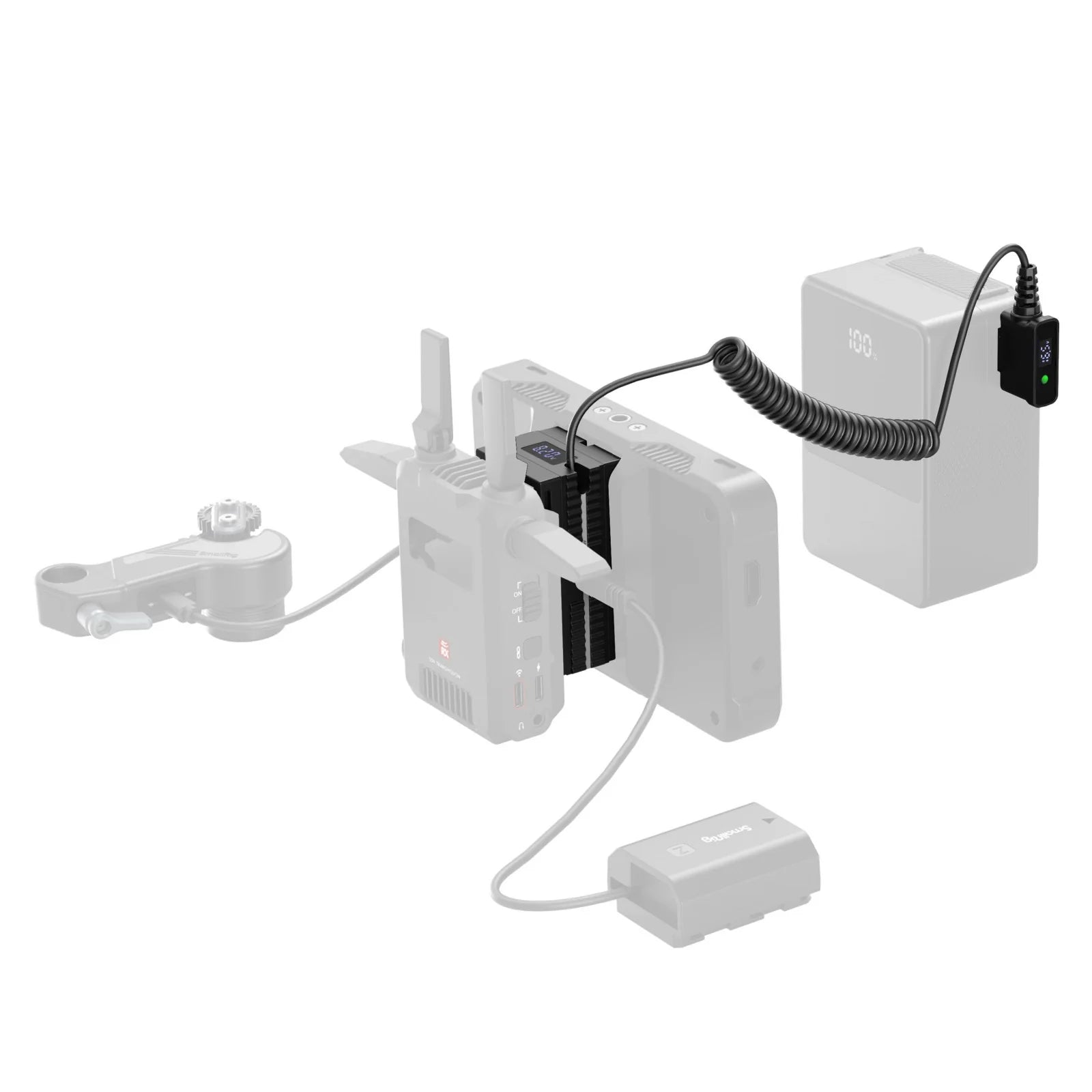

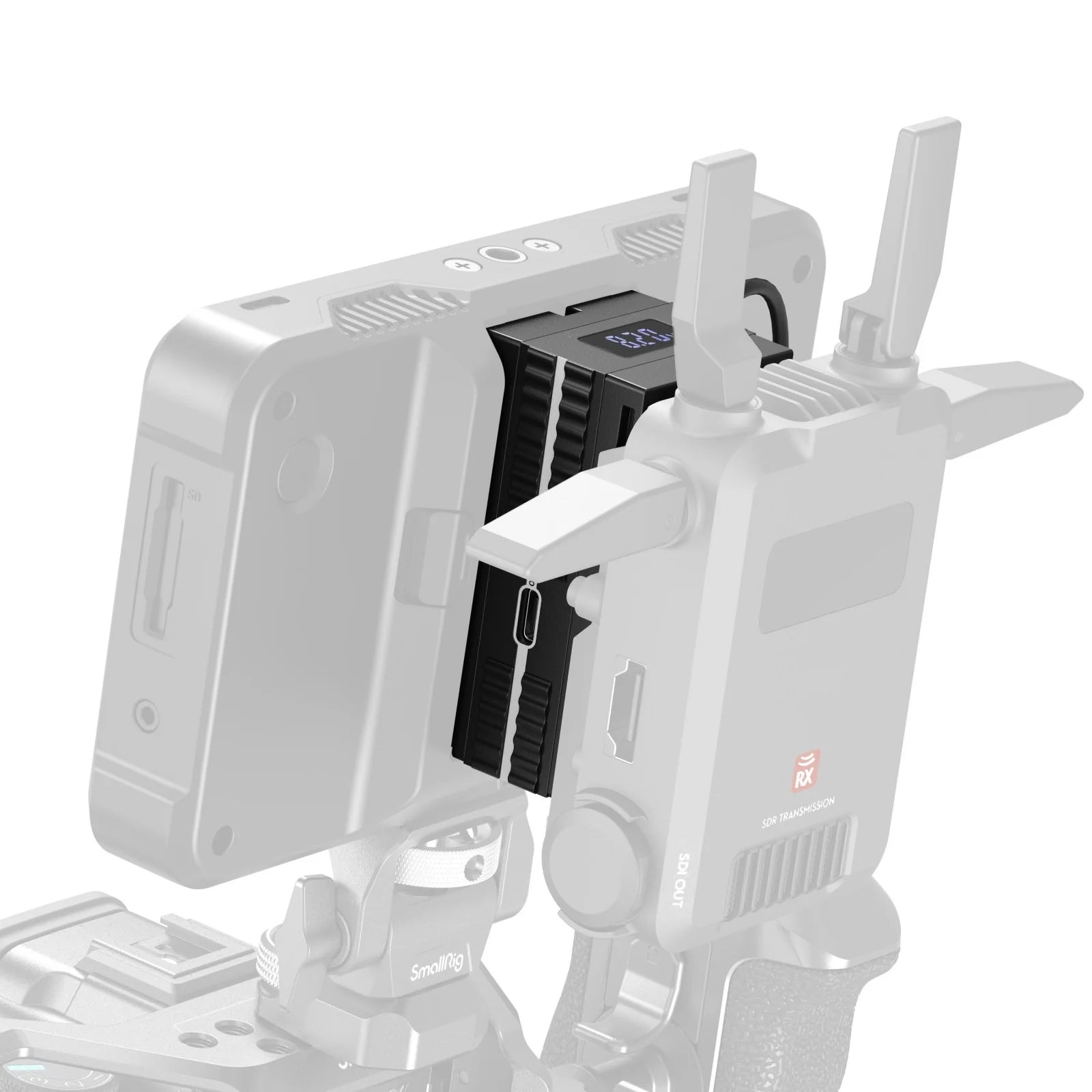

  • Close-up of the SmallRig dummy battery adapter mounted between a wireless video receiver and monitor.
  • SmallRig D-Tap to Dual NP-F dummy battery adapter with coiled power cable and compact housing design.
1 7

RIGR

Small Rig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

Small Rig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884 is a multifunctional dummy battery power cable featuring one D-Tap input and four outputs: two NP-F outputs, one DC output, and one USB-C output, enabling simultaneous charging of four devices. The NP-F outputs power monitors and video transmitters, the DC output powers cameras via dummy batteries, and the USB-C output powers devices like follow focus motors and mobile phones.

Designed for portability and efficient cable management, this power cable is equipped with two displays and one indicator. The D-Tap port features a display for input voltage and an indicator for reverse plugging warning and input voltage range, while the dummy battery display shows NP-F and DC input voltage.

Constructed from fire-resistant PC, PU, and metal for optimal heat dissipation, this cable enhances efficiency and safety. It incorporates multiple circuit protections—overheating, short-circuit, low-voltage, and over voltage—to ensure safe charging and reliable performance during shooting.

Package Includes

Material

• ABS + Aluminum Alloy

D-Tap Rated Input

• 20V / 4A

NP-F / DC Rated Output Voltage

• 8.2V

NP-F / DC Max Output Current

• 4A

USB-C Output

• Max Output: 33W

• PD: 5V / 3A, 9V / 3A, 12V / 2.5A

• PPS: 3.3–11V / 3A (30W Max)

Indicator & Display Functions

• Green Light: Forward plugging

• Red Light: Reverse plugging – power auto cut-off

• Flashing Red Light: Input voltage 10V–12V

• Red Light (Solid): Input voltage 12V–13V

• Green Light (Solid): Input voltage above 13V

• Displays:

 – D-Tap Input Voltage

 – NP-F / DC Output Voltage

• Overheating Warning (07P)

• Short-Circuit Warning

• Low-Voltage Warning (OC)

• Overvoltage Warning (OC)

Circuit Protection

• NP-F Port Overcurrent Protection:

 – Triggers at 5.5A, resets below 5A

• Short-Circuit Protection:

 – Engages on fault, resumes when resolved

Product Weight

• 105.0 ± 5.0g / 3.7 ± 0.2oz

Product Dimensions

• 400 x 40 x 30mm / 15.7 x 1.57 x 1.18 in

Package Weight

• 143 ± 5.0g / 5 ± 0.2oz

Package Dimensions

• 113 x 84.5 x 42mm / 4.4 x 3.3 x 1.65 in
