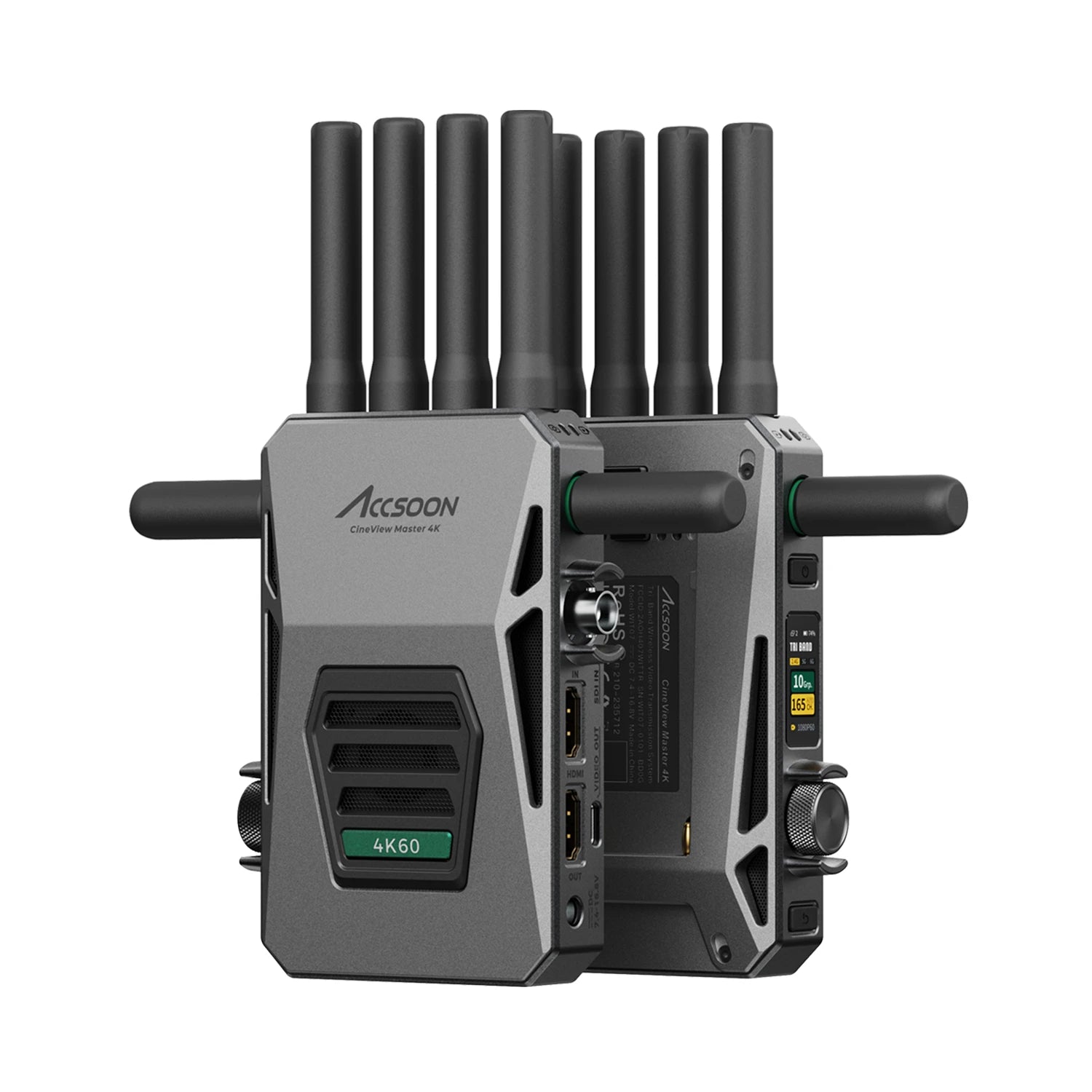

• Accsoon CineView Master 4K wireless video transmission system transmitter and receiver with antennas attached, front three-quarter view.

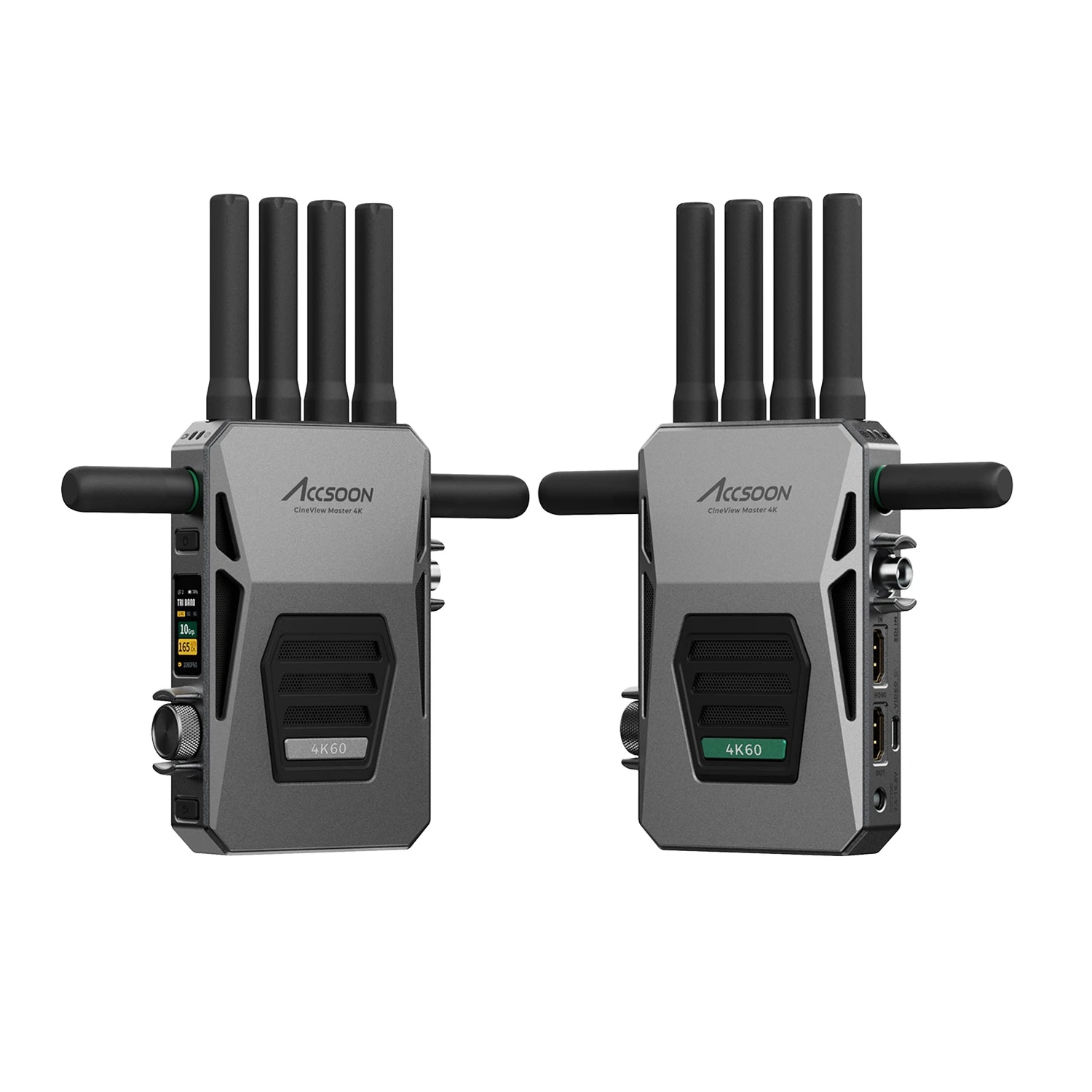

  • Accsoon CineView Master 4K transmitter and receiver front view showing 4K60 badge and antenna configuration.

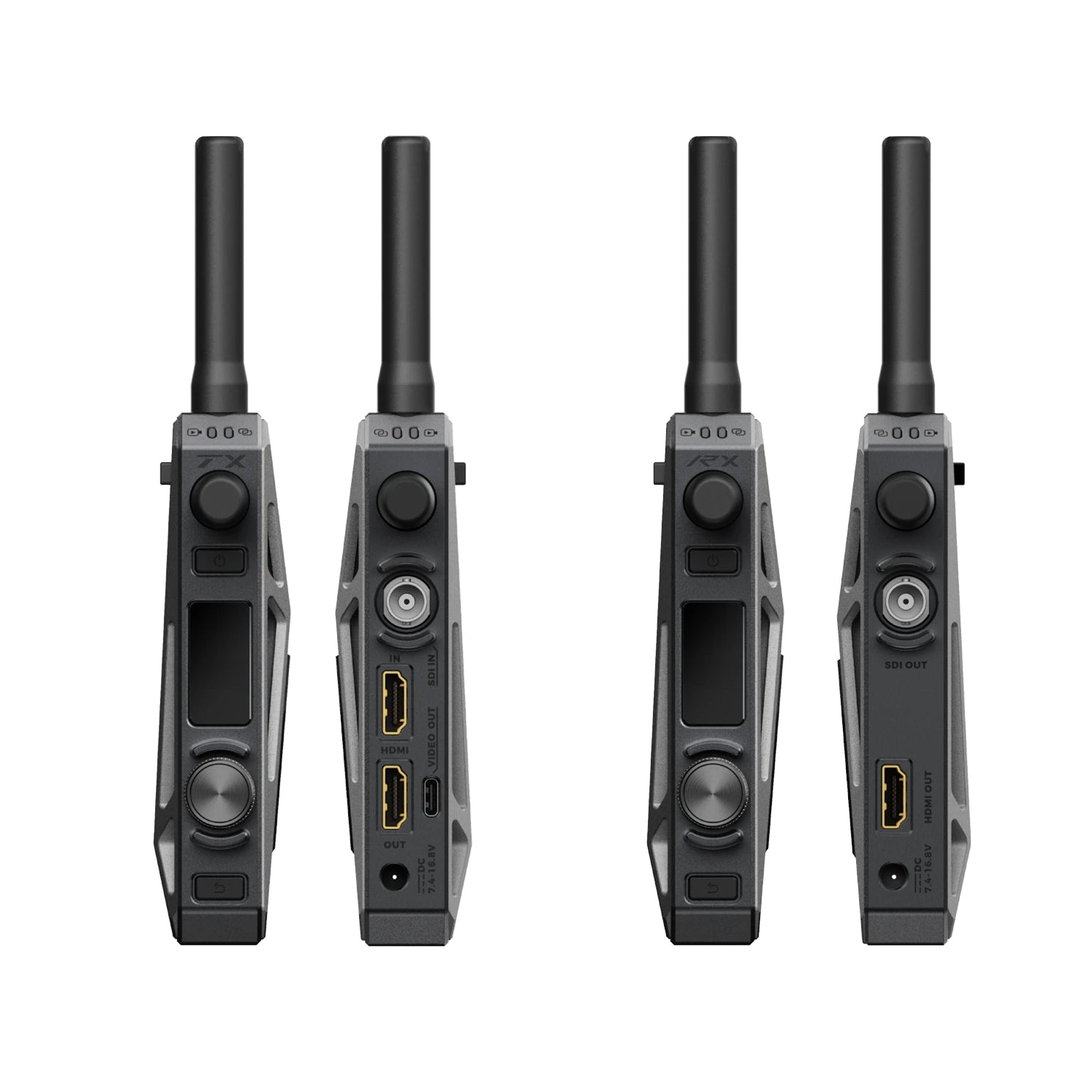

  • Accsoon CineView Master 4K side view showing HDMI input and output, SDI ports, DC input and control interface.

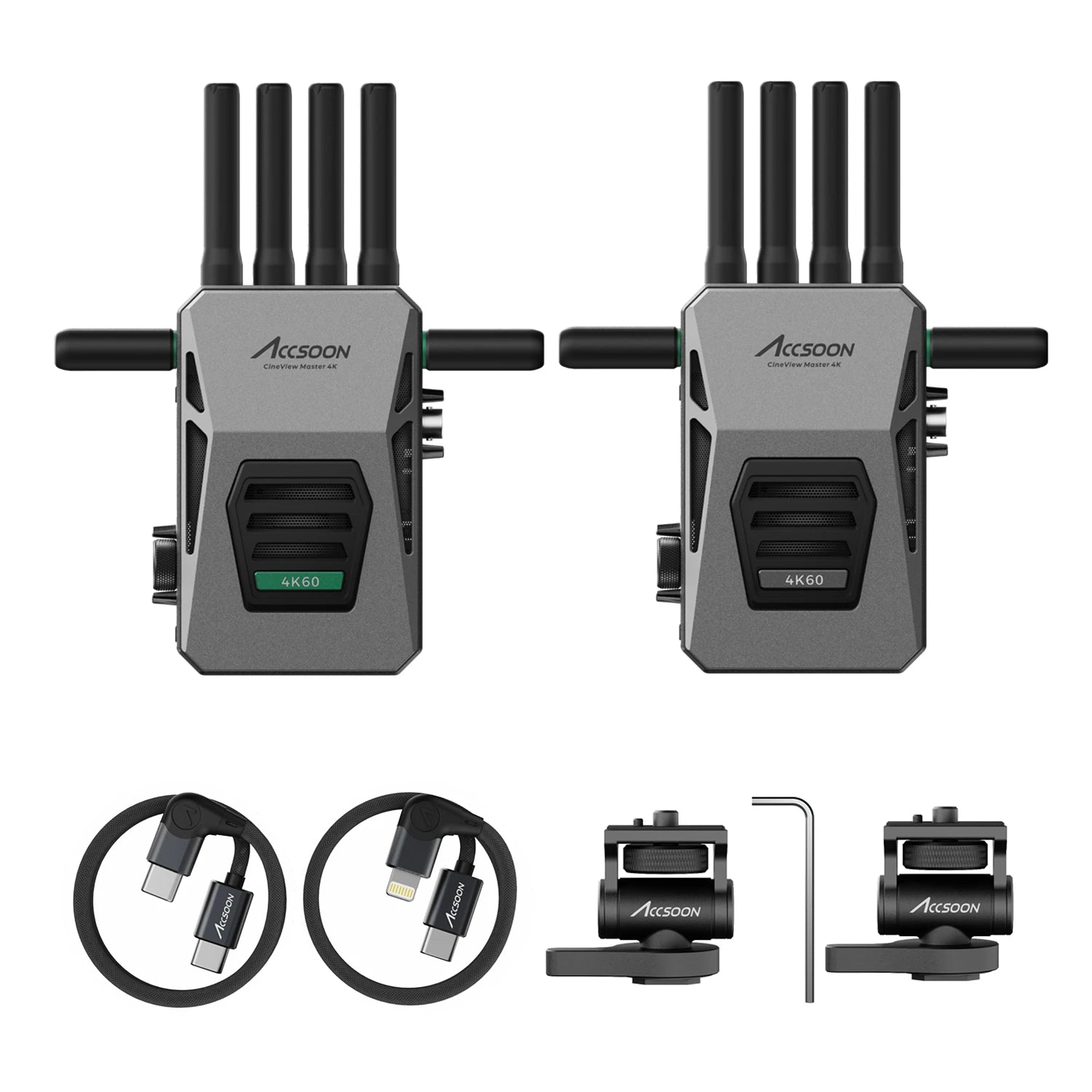

  • Accsoon CineView Master 4K kit contents including transmitter, receiver, antennas, USB-C cables, mounting adapters and accessories.

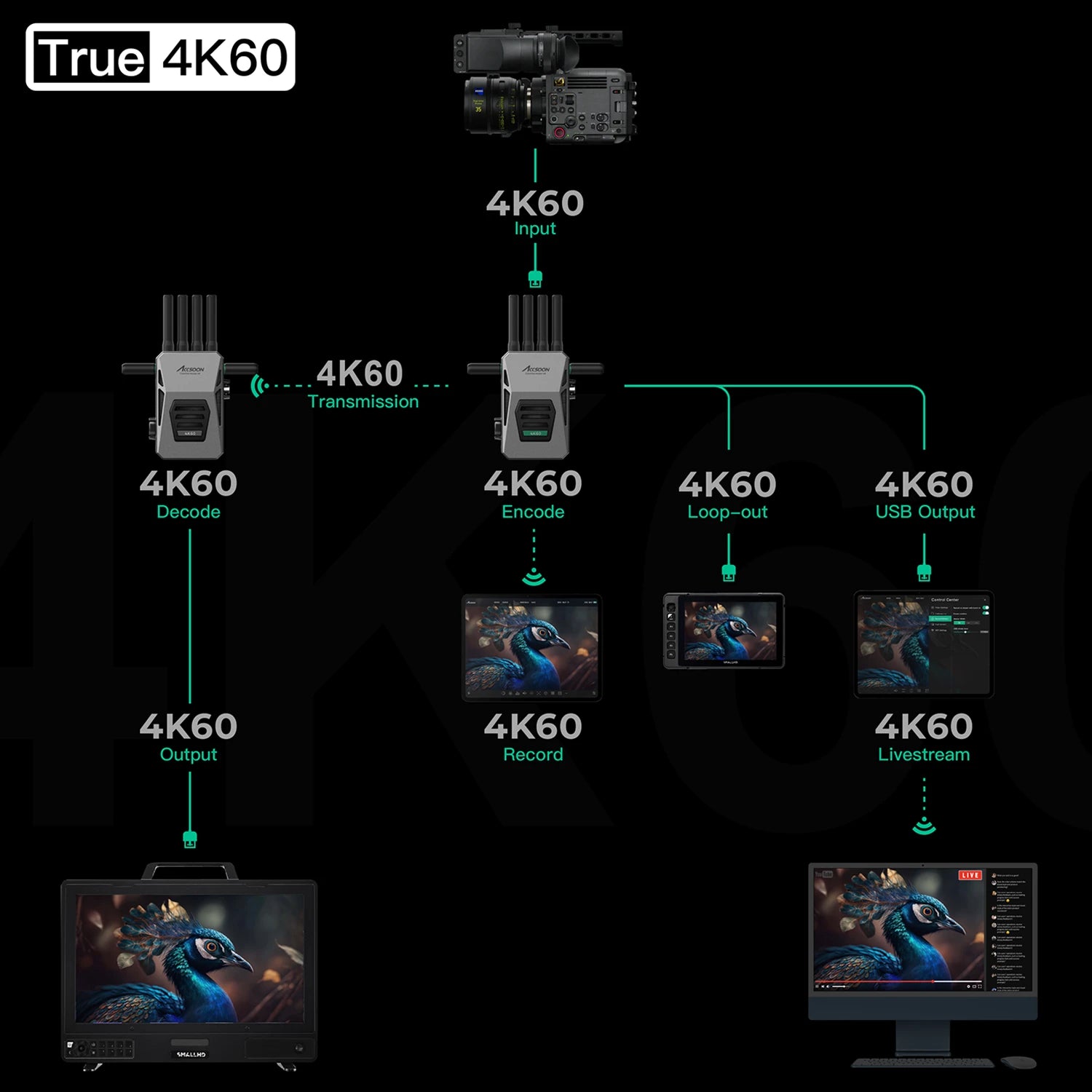

  • accsoon-cineview-master-4k-true-4k60-signal-flow-diagram.png Alt Text: Accsoon CineView Master 4K 4K60 workflow diagram showing input, encode, transmission, decode, loop-out, USB output, recording and livestream signal path.
  • Accsoon CineView Master 4K 4K60 workflow diagram showing input, encode, transmission, decode, loop-out, USB output, recording and livestream signal path.
1 6

RIGR

Accsoon CineView Master 4K Wireless Video Transmission System

Accsoon CineView Master 4K Wireless Video Transmission System

The Accsoon CineView Master 4K is a professional-grade wireless video transmission system engineered for high-performance production environments. It delivers true end-to-end 4K60 video from camera to monitor with responsive transmission and industry-leading reliability.

Featuring Tri-Band wireless technology (2.4 GHz, 5 GHz & 6 GHz) and Accsoon’s proprietary RTMS 4.0 protocol, the CineView Master 4K adapts intelligently across frequency channels for robust connectivity and reduced interference in crowded RF environments. With a low latency of around 25 ms, extended line-of-sight range up to 2.5 km / 1.5 mi, and support for simultaneous wired and wireless monitoring, this system is suited to pro film sets, multicam shoots, live capture, and broadcast workflows.

Both the transmitter and receiver are built with rugged aluminium bodies and efficient heat dissipation, while the Accsoon SEE app provides on-set control and monitoring options on iOS and Android devices.

Package Includes

  • 1 × Accsoon CineView Master 4K Transmitter
  • 1 × Accsoon CineView Master 4K Receiver
  • 8 × Wireless Antennas (Tri-Band)
  • USB-C to USB-C Cable
  • USB-C to Lightning Cable
  • Cold Shoe Mount Adapter
  • Allen Key
  • User Manual

Specs

Wireless Transmission

  • Tri-Band Wireless (2.4 GHz + 5 GHz + 6 GHz)
  • Proprietary RTMS 4.0 Protocol
  • Wireless Range: Up to 2.5 km / 1.5 mi (line of sight)
  • Latency: ~25 ms (1080p) / ~35 ms (4K60) (camera latency excluded)
  • Number of Channels: 20+
  • Multi-device support: up to 5 connections (4 wireless + 1 wired)

Video I/O

Transmitter:

  • HDMI 2.0 Input & Loop-Out
  • 3G-SDI Input
  • USB-C Video Output (wired to iOS devices)

Receiver:

  • HDMI 2.0 Output
  • 3G-SDI Output
  • UVC Output (via USB)

Supported Formats

  • 4K (3840×2160) @ 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i & 720p formats
  • Embedded audio supported via HDMI/SDI

Power & Build

  • DC Input: 7.4 – 16.8 V
  • Battery-Compatible with NP-F550 / NP-F750 / NP-F970 batteries
  • Power Consumption: ~6.5 W (average)
  • Housing: Aircraft-grade aluminium
  • Operating Temperature: –10 °C to 40 °C
  • Display: Integrated LCD status screens

Physical

  • Dimensions (excluding antennas): ~130 × 95 × 32 mm
  • Weight (excluding antennas): ~320 – 322 g
