Kupo 546M Junior Boom Stand (Steel Heavy-Duty Combo Boom)
Kupo 546M Junior Boom Stand (Steel Heavy-Duty Combo Boom)
The Kupo 546M Junior Boom Stand is a heavy-duty, all-steel combo stand designed for professional film, commercial, and studio lighting setups. Built to handle large fixtures and overhead rigging, the 546M combines the height and strength of a junior stand with a fully integrated steel boom arm for precise positioning when floor space is limited.
Constructed from chrome-plated steel, it delivers exceptional rigidity and stability, supporting up to 30 kg on the main riser and up to 5 kg when the boom is fully extended. The boom arm adjusts from 500 mm to 1130 mm, making it ideal for top-lights, backlights, hair lights, and suspended modifiers.
The stand extends from 117 cm to 372 cm, offering serious reach for studio and on-location setups. Its combo head includes both a 1-1/8" (28 mm) Junior Receiver and a 5/8" (16 mm) Baby Pin, ensuring universal compatibility with cinema lights, strobes, and grip accessories.
With oversized locking handles, a reinforced steel base, and a counterweight-ready boom, the 546M is engineered for crews who need dependable, high-capacity support on demanding sets.
Package Includes
Package Includes
- 1 × Kupo 546M Junior Boom Stand (Chrome-Plated Steel)
- 1 × Integrated 2-in-1 Stand Top
Junior Receiver (28mm)
Baby Receiver + Baby Pin (16mm) - 1 × Built-In Levelling Leg
- 1 × Boom Arm with Dual-Locking Knuckles
- Pre-installed Hardware, Handles & Tension Locks
Specs
Specs
Construction
- Chrome-plated steel
- 3 risers, 4 sections
- Centre Column Diameters: 45 mm / 40 mm / 35 mm / 30 mm
- Integrated levelling leg for uneven terrain
Load Capacity
- Standard Stand Mode: 30 kg (66 lbs)
- Boom Mode:
Min Boom Length (155 cm / 61"): Load up to 30 kg (66 lbs)
Max Boom Length (268 cm / 105.5"): Load up to 8 kg (17.6 lbs)

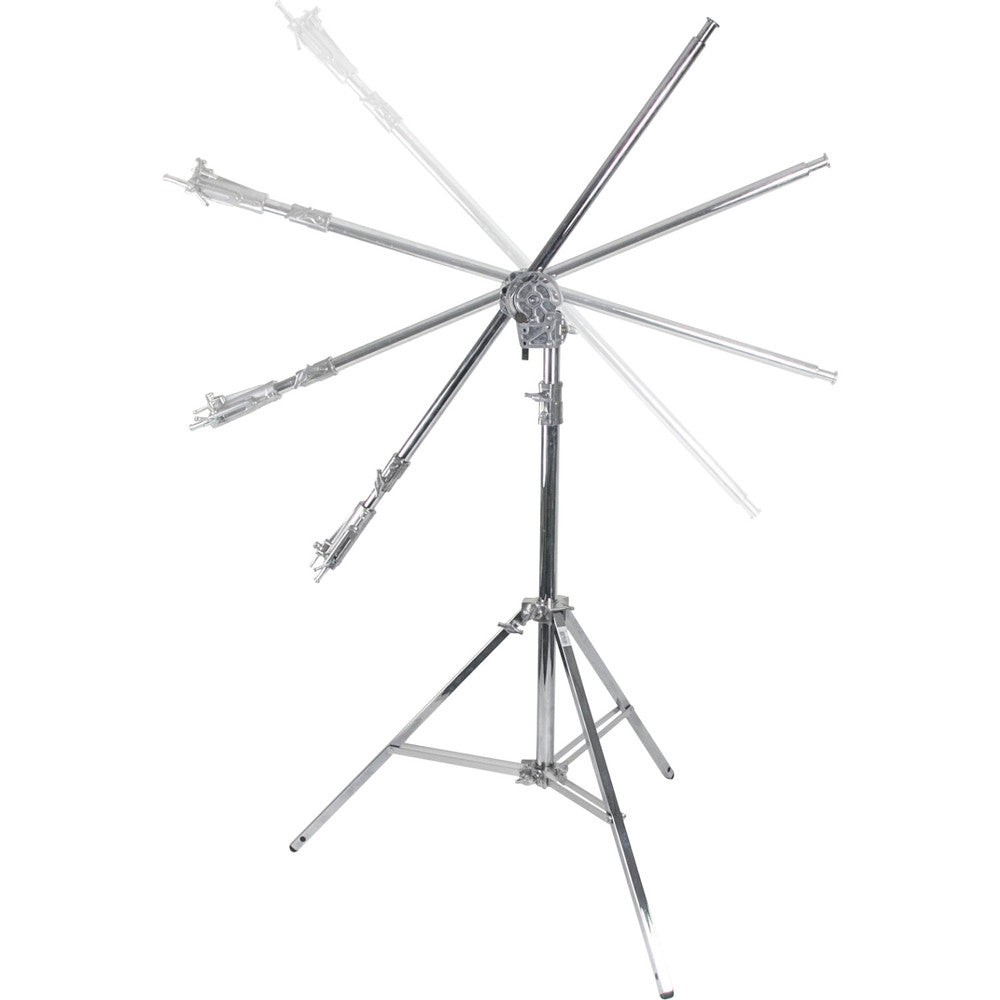

Boom Arm
- Length: 155 – 268 cm (61" – 105.5")
- Heavy-duty pivoting mechanis
- Counterweight hook included
Dimensions
- Closed Length: 160 cm (63.0")
- Minimum Height: 166 cm (65.4")

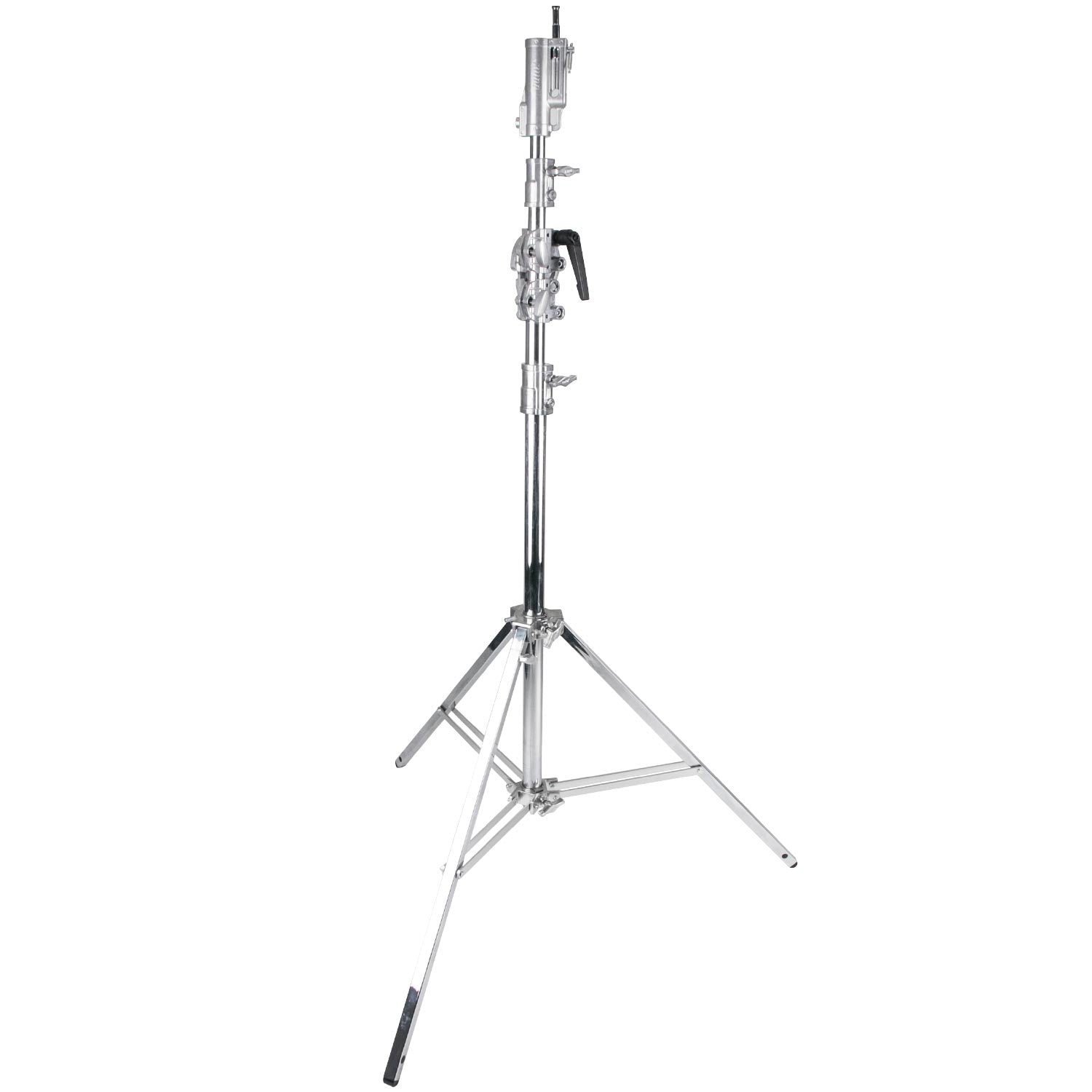

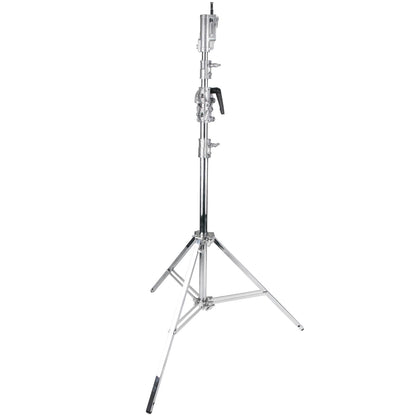

- Maximum Height: 510 cm (200")
- Footprint Diameter: 134 cm (52.8")
Weight
- 16.1 kg (35.49 lbs)
Mounting
- Universal Stand Top:
1-1/8" Junior Receiver
5/8" Baby Receiver
5/8" Baby Stud
Compatibility
- Suggested casters: KC-100S / KC-215S
- Supports industry-standard lighting fixtures and modifiers
