Accsoon CineView 2 SDI 2 – Wireless HDMI & SDI Video Transmission System (TX + RX Kit)
Accsoon CineView 2 SDI 2 – Wireless HDMI & SDI Video Transmission System (TX + RX Kit)
Built for serious on-set monitoring, the Accsoon CineView 2 SDI 2 delivers stable, long-range wireless video transmission with both HDMI and 3G-SDI connectivity. Designed for cinema cameras, broadcast setups and hybrid rigs, it gives you the flexibility to move freely without compromising signal integrity.

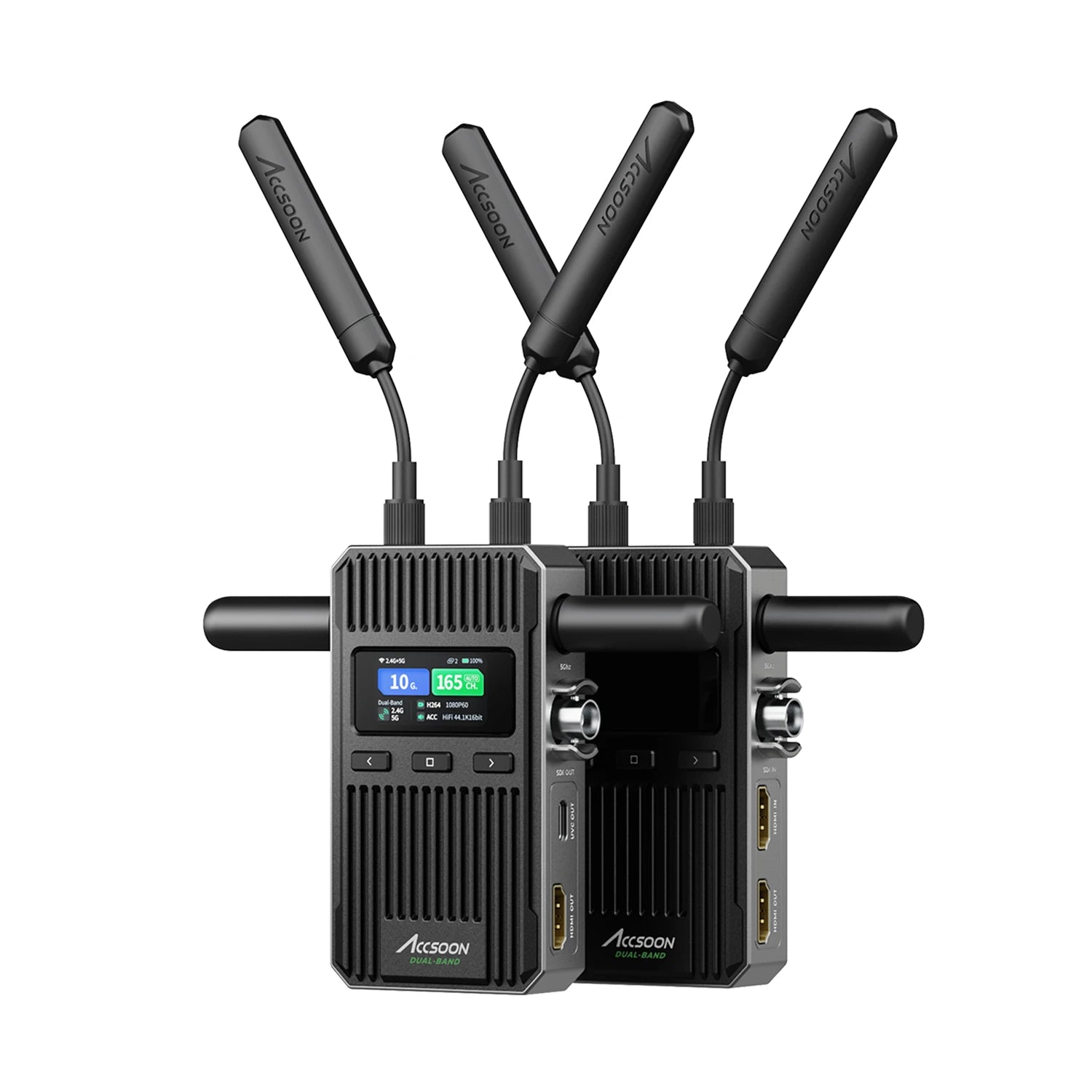

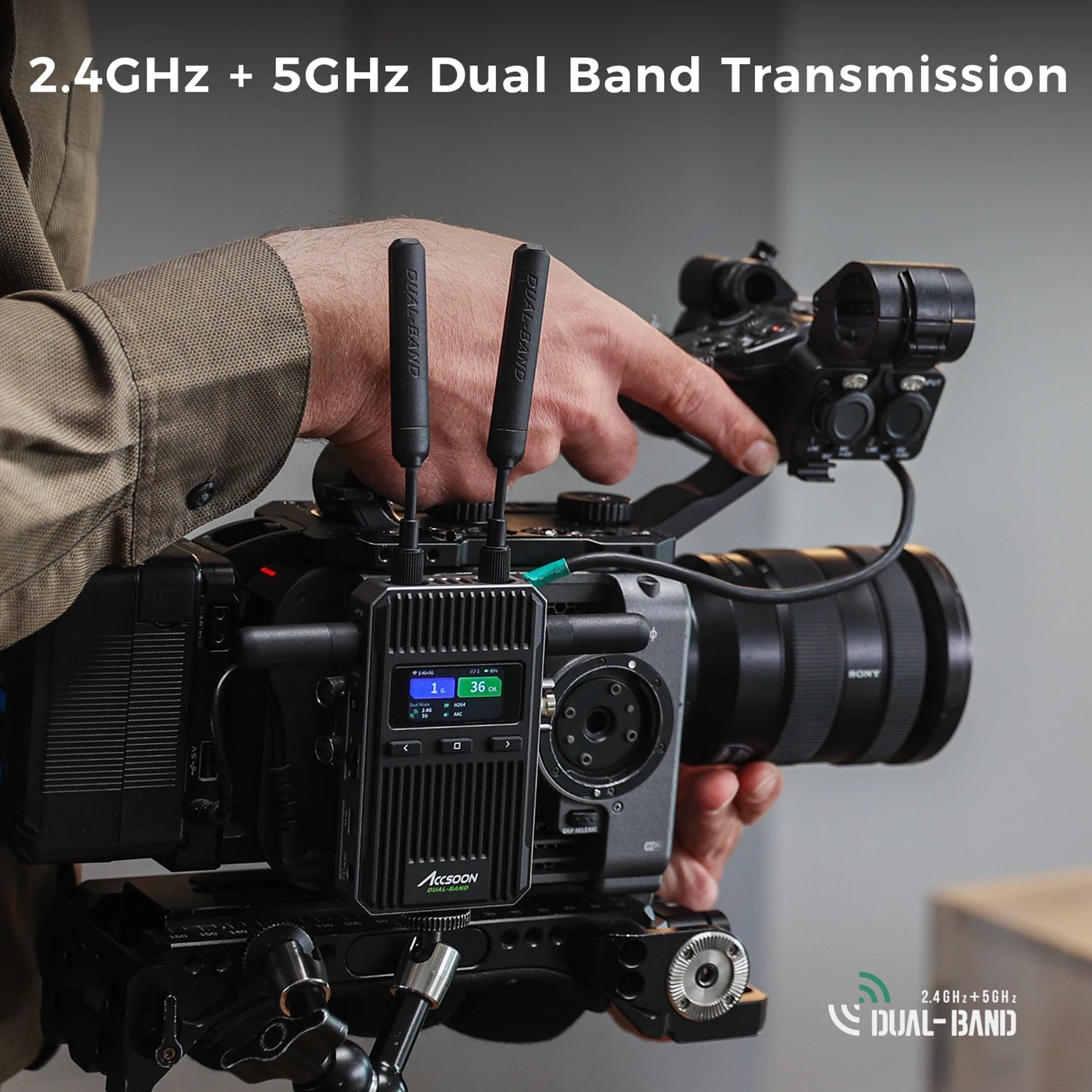

With dual-band 2.4GHz + 5GHz transmission, up to 450m range, and ultra-low 50ms latency, this system is ready for commercial shoots, documentary work, live events and multi-camera productions.

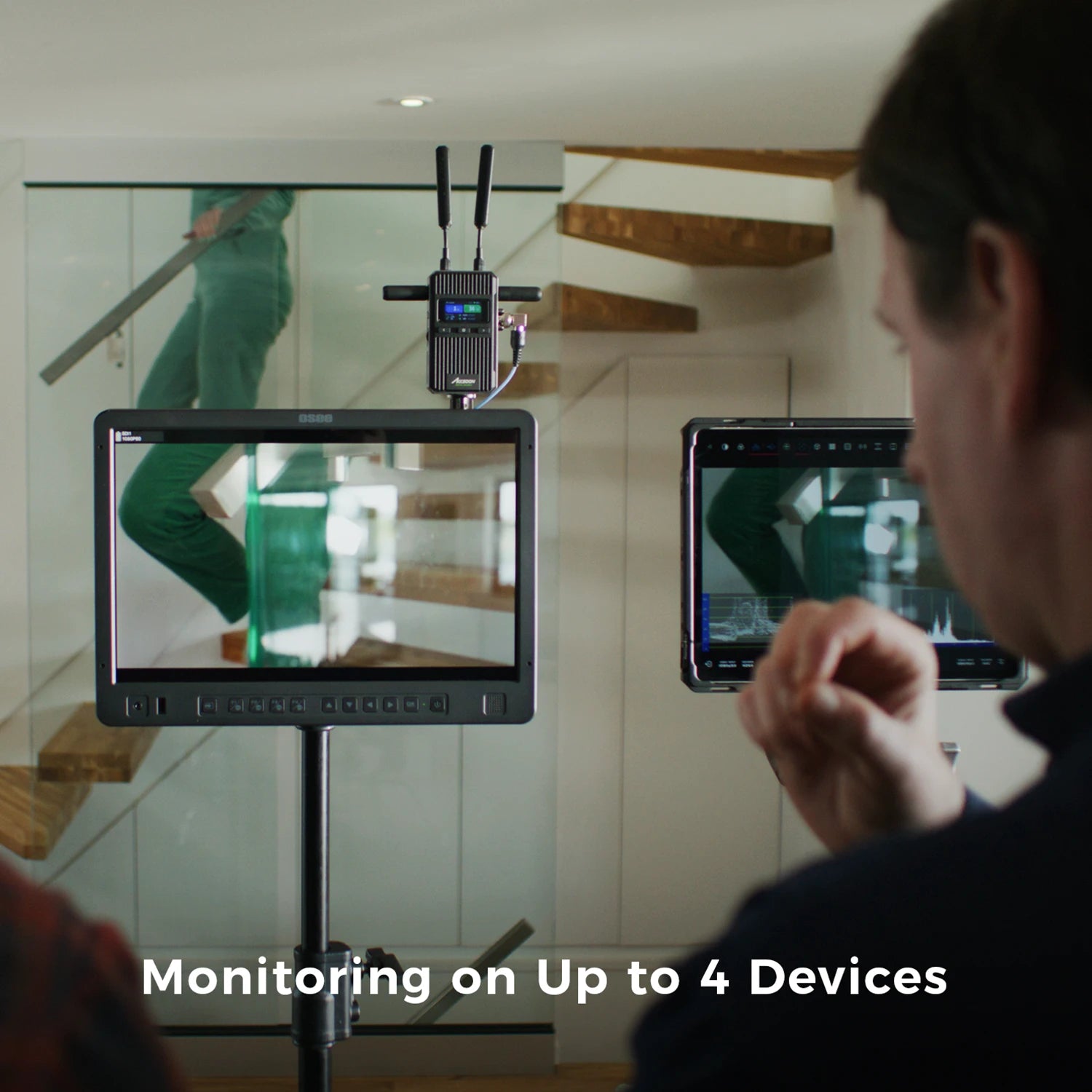

Lightweight, durable and built in aircraft-grade aluminium, the CineView 2 SDI 2 integrates seamlessly into professional workflows, supporting up to four monitoring devices simultaneously, including dedicated receivers and mobile devices via the Accsoon app.
Reliable. Flexible. Built for filmmakers who move.

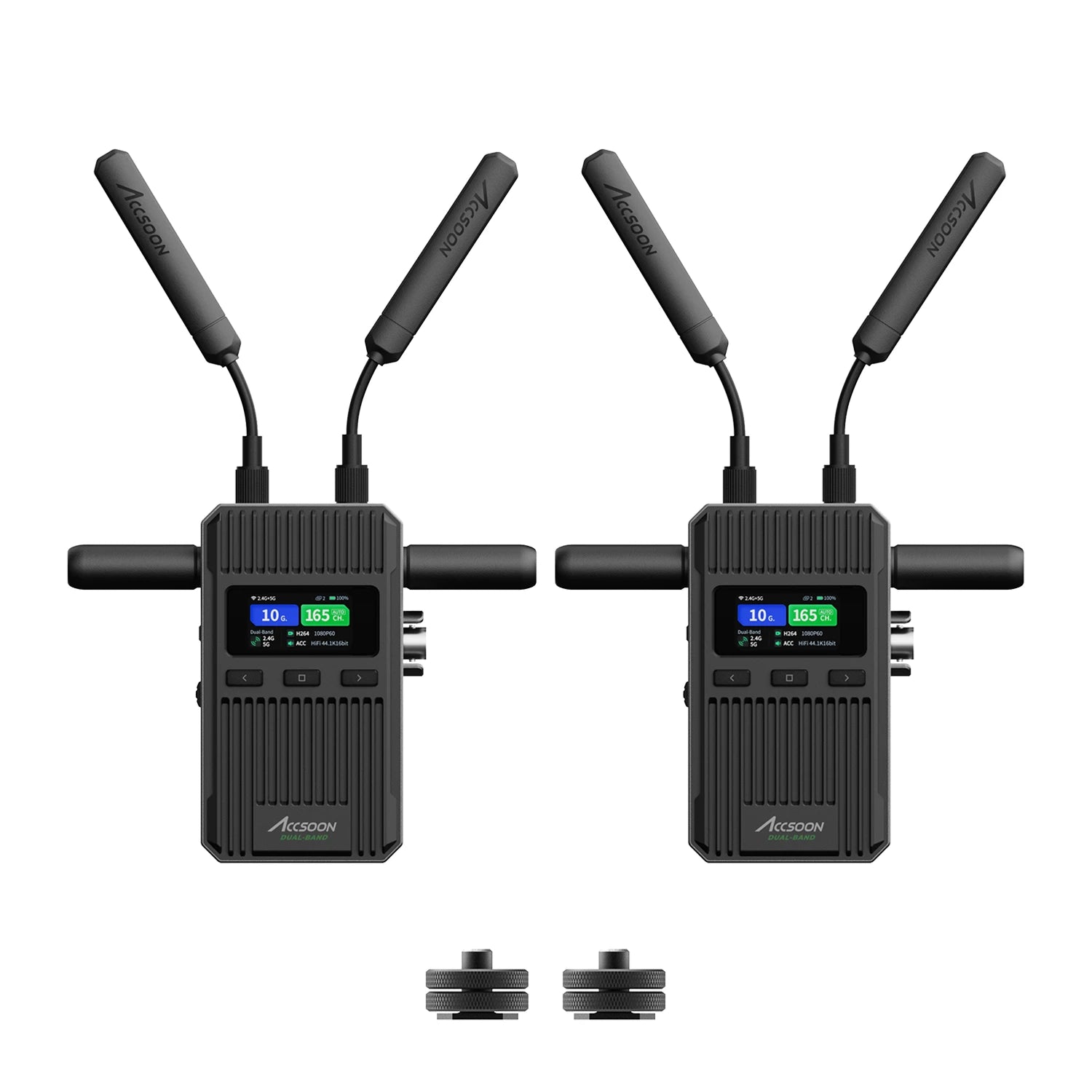

Package Includes
Package Includes
- 1 × CineView 2 SDI Transmitter
- 1 × CineView 2 SDI Receiver
- 4 × Antennas
- 1 × USB-C Power Cable
- 2 × Cold Shoe Mount
- 1 × User Manual
Specs
Specs
Video

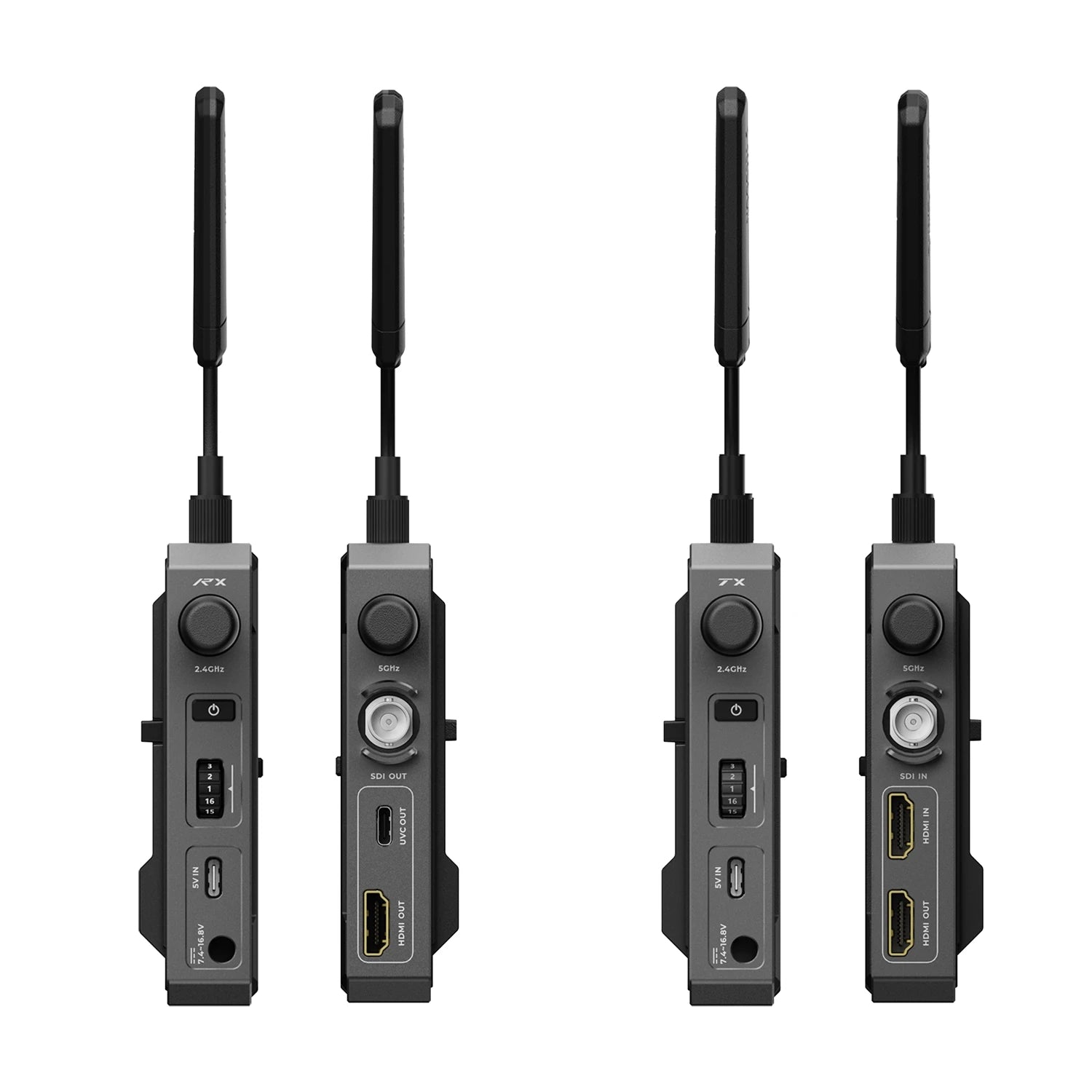

- Video Input: HDMI®, 3G-SDI
- Video Output: HDMI® Loop-Out
SDI Input Formats:
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60fps (Level A/B)
- 1080i: 50 / 59.94 / 60i
- 720p: 50 / 59.94 / 60p
HDMI® Input Formats:
- 4K DCI (4096×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
- 4K UHD (3840×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
- 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
- 1080i: 50 / 59.94 / 60i
- 720p: 50 / 59.94 / 60p
HDMI® Loop-Out Format:
- Identical to HDMI® / SDI input signal
Power
- DC Port: 5.5mm × 2.1mm (center positive)
- DC Voltage: 7.4V – 16.8V

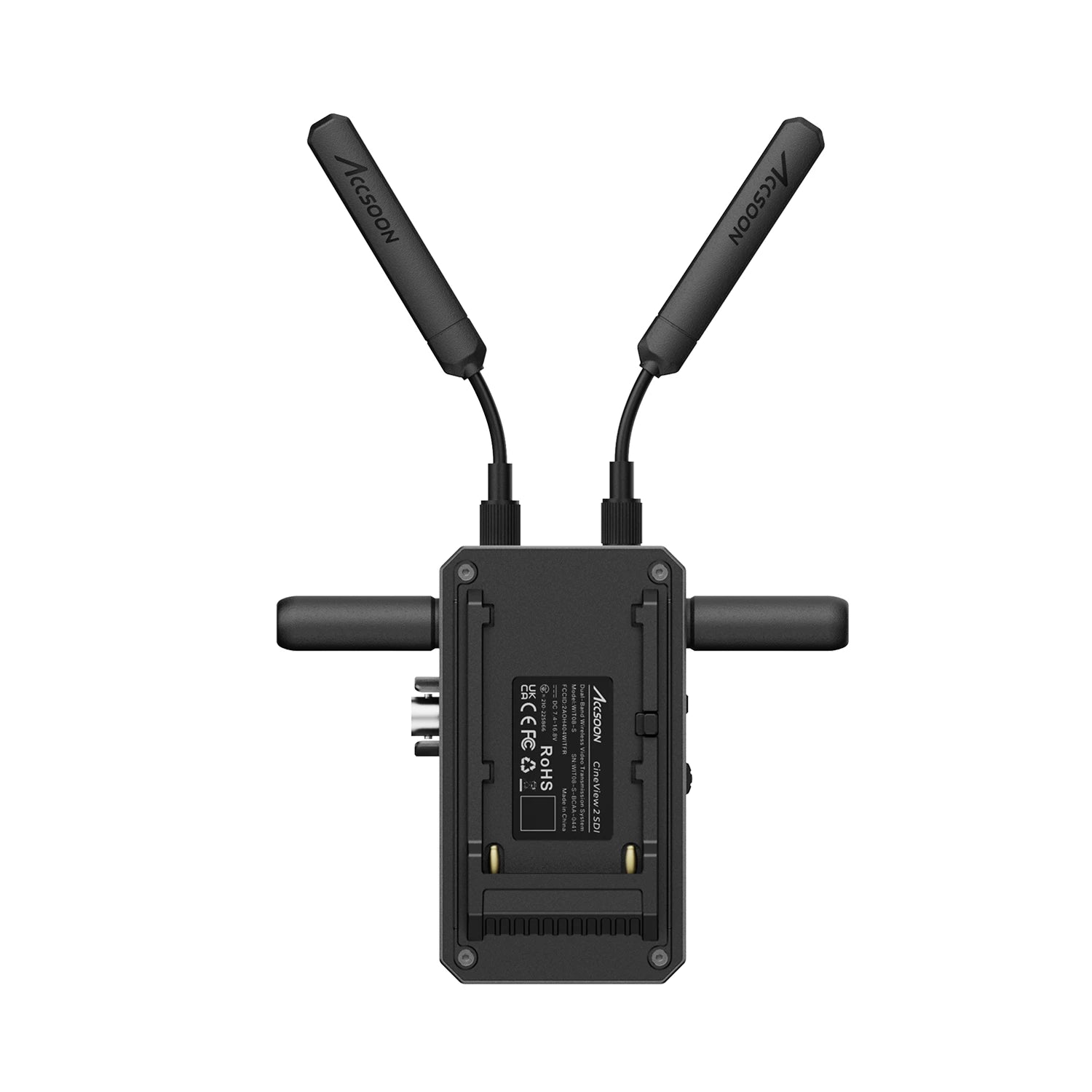

- Compatible Batteries: NP-F550 / NP-F750 / NP-F970
- USB-C Power Input: 5V / 2A
- Power Consumption: <6W
Wireless
- Transmission Power:
2.4GHz: 20dBm
5GHz: 20dBm

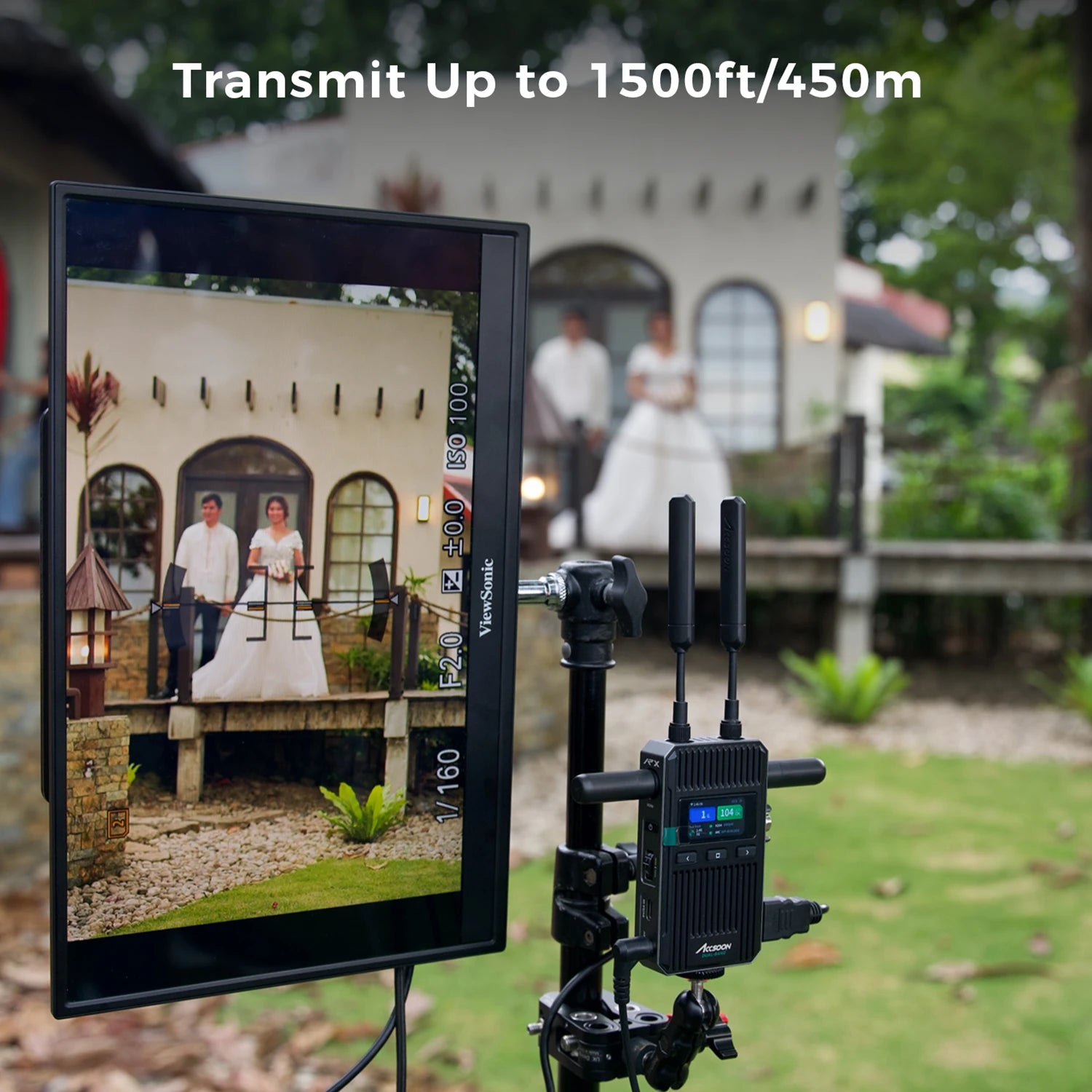

- Transmission Range: Up to 1500ft / 450m (no obstacles, no interference)
- Latency: <50ms (camera latency not included)
Audio
- 44.1kHz / 48kHz
- 16 / 20 / 24-bit
Display
- 1.47" Full-Color LCD Screen
Physical
- Operating Temperature: –10°C to 40°C
- Dimensions (antennas excluded): 60 × 27.5 × 106.5mm
- Weight (antennas excluded): 210g
✅ Receiver Specifications
Video
- Video Output: HDMI®, 3G-SDI, UVC
SDI Output Formats:
- 1080p: 24 / 25 / 30 / 50 / 60p (Level A)
- 1080i: 50 / 60i
- 720p: 50 / 60p
HDMI® Output Formats:
- 1080p: 24 / 25 / 30 / 50 / 60p
- 1080i: 50 / 60i
- 720p: 50 / 60p
Power
- DC Port: 5.5mm × 2.1mm (center positive)
- DC Voltage: 7.4V – 16.8V
- Compatible Batteries: NP-F550 / NP-F750 / NP-F970
- USB-C Power Input: 5V / 2A
- Power Consumption: <5W
Wireless
- Transmission Power:
2.4GHz: 20dBm
5GHz: 20dBm
- Transmission Range: Up to 1500ft / 450m (no obstacles, no interference)
- Latency: <50ms (camera latency not included)
Audio
- 44.1kHz / 48kHz
- 16 / 20 / 24-bit
Display
- 1.47" Full-Color LCD Screen
Physical
- Operating Temperature: –10°C to 40°C
- Dimensions (antennas excluded): 60 × 27.5 × 106.5mm
- Weight (antennas excluded): 210g
