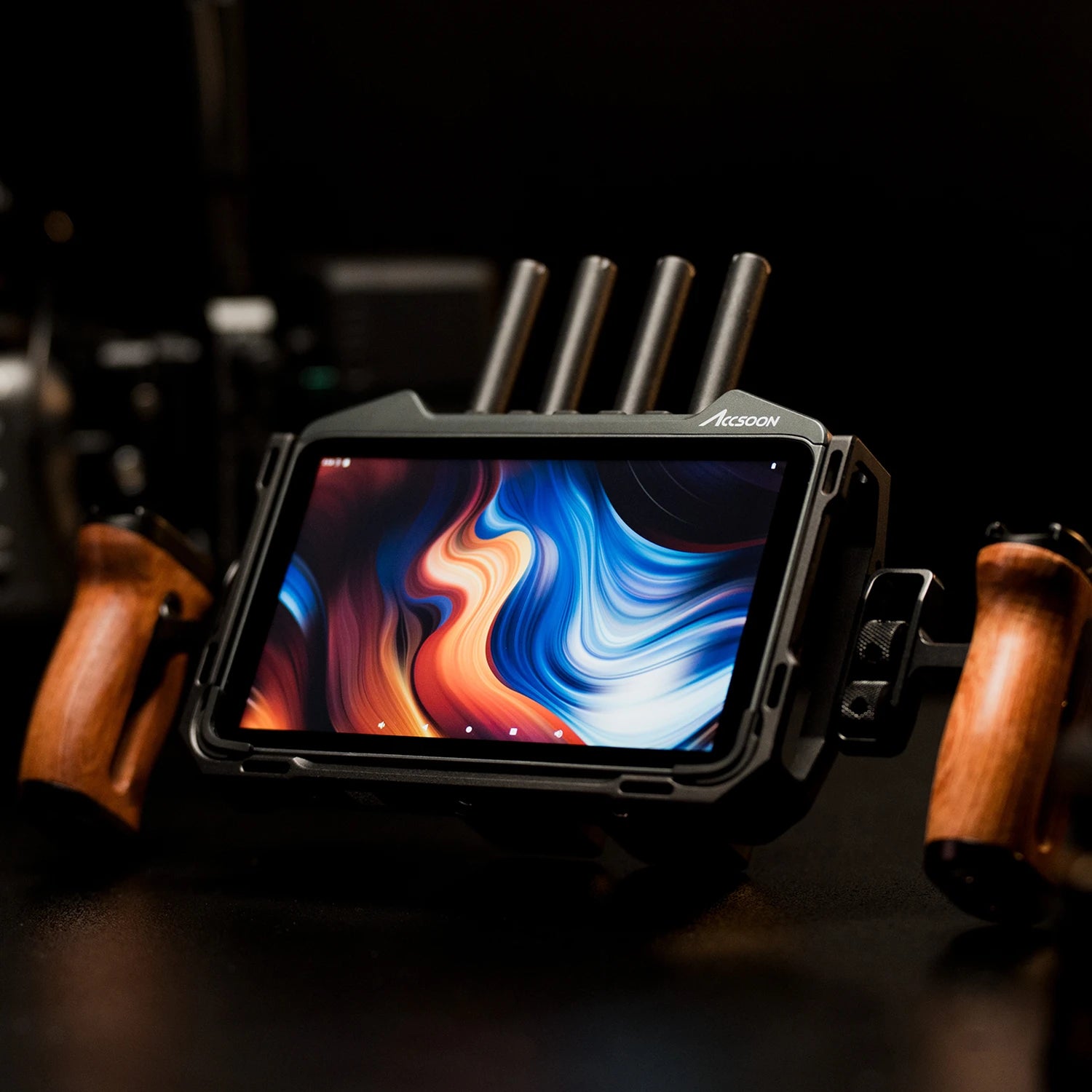

  • Accsoon CineView M7 Pro wireless monitor with quad antennas placed on table between wooden camera rig handles for professional on set monitoring
1 6

RIGR

Accsoon CineView M7 Pro Wireless Monitor

Accsoon CineView M7 Pro Wireless Monitor

The Accsoon CineView M7 Pro is more than a wireless monitor. It’s a complete on-set control and recording solution built for professional filmmaking workflows.

Combining a 7-inch high-bright touchscreen monitor, integrated wireless transmission, and internal recording up to 4K60, the M7 Pro reduces the need for separate transmitters and external recorders mounted to your rig.

It supports HDMI and SDI input and output, making it compatible with cinema cameras, mirrorless systems and broadcast setups. In addition to monitoring and transmitting, the M7 Pro allows full camera control (compatible models) directly from the screen — streamlining operation for solo operators, DPs and ACs.

Powered by Accsoon’s dedicated operating system, the interface is fast, intuitive and built specifically for production environments. Monitoring tools, waveform, LUT support and wireless control are integrated into one unified workflow.

Key capabilities include:

  • Wireless video transmission

  • 4K60 internal recording

  • Full camera control

  • Multi-device monitoring

  • Dedicated OS for streamlined operation

This is a production hub — not just a monitor.



Package Includes

  • 1 × Accsoon CineView M7 Pro Monitor
  • 4 × Detachable Antennas
  • 1 × Monitor Mount
  • 1 × Sun Hood
  • 1 × Power Adapter
  • 1 × User Manual

Specs

Display & Screen

  • 7" LCD Ultra High-Resolution Capacitive Touchscreen
  • Resolution: 1920 × 1080
  • Pixel Density: 323 PPI
  • Aspect Ratio: 16:9
  • Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • Viewing Angle: 176° / 176°
  • Edge-Lit Ultra-Transparent LED Backlight
  • Screen Colour Calibration Supported

LUT Support

  • 1D & 3D Cube LUTs Supported
  • 1D LUT: Up to 4096 points
  • 3D LUT: Up to 127 points

Video Input

HDMI® 2.0 Input Formats:

  • 4K DCI (4096×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60

3G-SDI Input Formats:

  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A/B)
  • 1080i: 50 / 59.94 / 60

Video Output

HDMI® 2.0 Output Formats:

  • 4K DCI (4096×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60

  • 720p: 50 / 59.94 / 60

3G-SDI Output Formats:

  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A/B)
  • 1080i: 50 / 59.94 / 60

Audio

  • Microphone Jack: 3.5mm TRS
  • Headphone Jack: 3.5mm CTIA
  • Microphone Input Audio Sampling: 16-bit / 48kHz

Power

  • DC Input: 6.0–16.8V (5.5mm × 2.1mm, Center Positive)
  • Compatible Batteries: NP-F550 / NP-F750 / NP-F970
  • USB-C Power Input: PD3.0 (9V/3A, 12V/3A, 15V/3A)
  • USB-C Power Output: Max 5V / 2A
  • Power Consumption: 12W–28W (varies by usage)

Wireless Transmission

  • Transmission Latency: 60ms
  • Transmission Distance: Up to 350m (Dual-Band Connection)

Build & Environmental

  • Housing: Aircraft-Grade Aluminium Alloy
  • Cooling: Active + Passive Heat Dissipation
  • Operating Temperature: –10°C to 40°C

Physical Specifications

  • Weight (Antennas Excluded): 494.3g
  • Dimensions (Antennas Excluded): 182.2 × 120.7 × 31.5mm
